HAZ-DUST IV Particulate Monitor

The HAZ-DUST IV displays immediate breathing zone measurements and comprehensive graph reporting of aerosol and dust for occupational hygiene and environmental air investigations. Interchangeable sampling heads enable specific particle fractions to be targeted. An inline 37 mm cassette, located behind the sensor, may be used to collect a concurrent filter sample for gravimetric or chemical analysis.

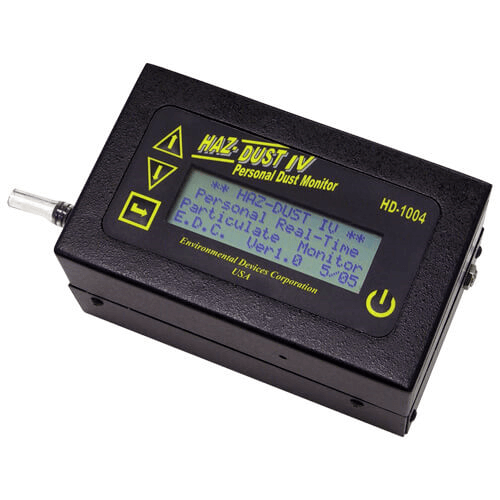

HAZ-DUST IV Particulate Monitor
HAZ-DUST IV being used by welder
Worker wearing HAZ-DUST IV

  •
  • Easy operation and instantaneous, continuous display of TWA, STEL, Minimum, Maximum concentration in mg/m3
  • Sensor mounts directly in the breathing zone for a personal sample

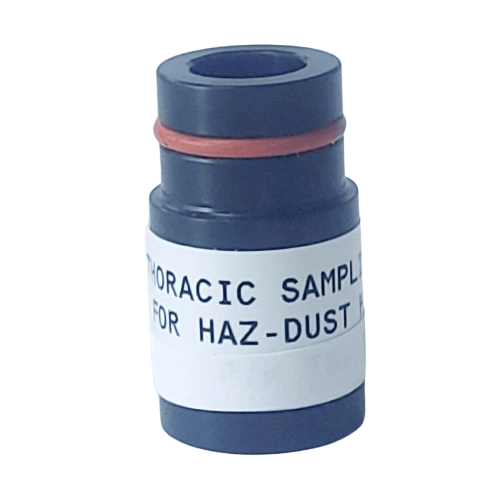

  • Interchangeable sampling heads for Inhalable, Thoracic and Respirable measurements

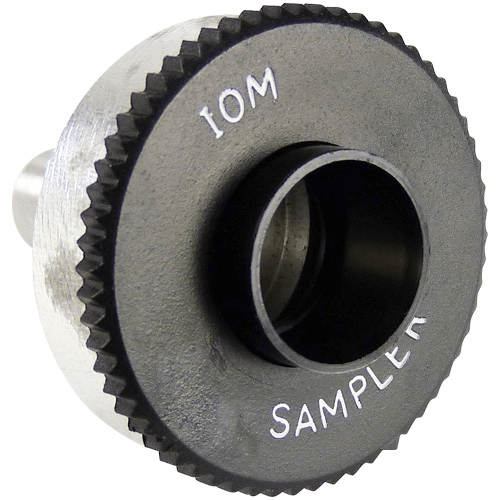

  • External switch to select between respirable calibration to NIOSH 0600 and 2.75 L/min flow rate (GS-3 Cyclone) or inhalable calibration to NIOSH 0500 and 2 L/min flow rate (IOM Sampler)
  • In-line 37 mm cassette (or optional 25 mm cassette using adaptor) for collecting a concurrent filter sample for gravimetric or chemical analysis
  • Small and lightweight with integral belt clip

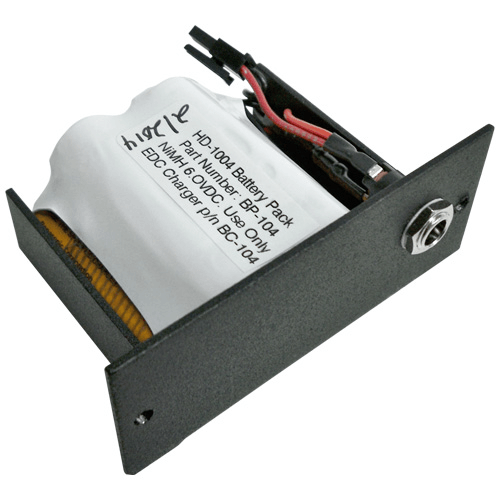

  • Operates for over 8 hours using rechargeable NiMH battery
  • Automatic data logging
  • Easy to use DustComm Pro Software for data downloading, trend analysis and comprehensive reporting of concentration changes over time
