Quartz Depth Filters
Quartz depth filters are used for sampling for elemental/organic carbon, Diesel Particulate Matter (DPM) and trace-level contaminants.
- Heat treated to reduce trace organics
- Binder free for maximum purity
- Low metal background
- Will withstand temperatures up to 1000°C (1832°F)
Filter Type
- Type R-100 Filters meet specific requirements set forth by NIOSH - 99.97% retention efficiency for 0.3 µm diocrylphthalate (DOP) particles up to a 200 mg filter loading.
- Tissuquartz™ Filters have a typical retention efficiency of 99.90% for 0.3 µm DOP particles at 32 L/min per 100 cm2 filter media.
Type R-100 Quartz Depth Filters
Type R-100 Filters meet specific requirements set forth by NIOSH - 99.97% retention efficiency for 0.3 µm diocrylphthalate (DOP) particles up to a 200 mg filter loading.
| Diameter (mm) | Notes | Pack Size | Part Number |
| 25 | Type R-100, 1.2 µm nominal pore size, 380 µm thick | 100 | 225-1824 |
| 37 | Type R-100, 1.2 µm nominal pore size, 380 µm thick | 100 | 225-1827 |
| 47 | Type R-100, 1.2 µm nominal pore size, 380 µm thick | 100 | 225-1830 |
Type Tissuquartz Depth Filters
Tissuquartz™ Filters have a typical retention efficiency of 99.90% for 0.3 µm DOP particles at 32 L/min per 100 cm2 filter media.
| Diameter (mm) | Notes | Pack Size | Part Number |
| 25 | Tissuquartz, 432 µm thick | 100 | 225-1825 |
| 37 | Tissuquartz, 432 µm thick | 25 | 225-1822 |
| 47 | Tissuquartz, 432 µm thick, can be used with DCS (Deployable Cartridge Sampler) System | 25 | 225-1823 |
| 47 | Tissuquartz, 432 µm thick, can be used with DCS (Deployable Cartridge Sampler) System | 100 | 225-1811 |
| 102 | QM-A 450 µm thick | 100 | 225-1808 |

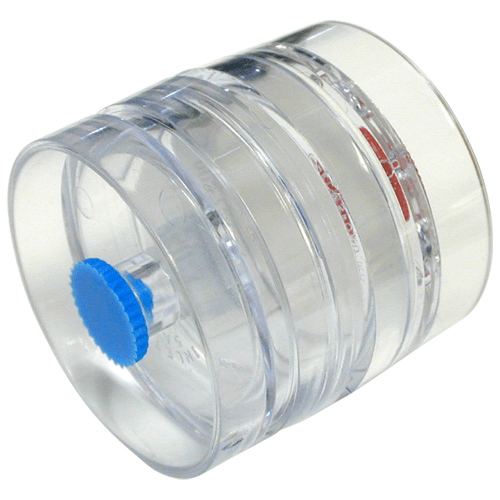

Preloaded Quartz Filters for DPM (Diesel Particulate Matter) Sampling
All SKC preloaded filters include supports and are in SureSeal leak-free cassettes that require a SureSeal Cassette Opener.
| Diameter (mm) | Filter and Cassette Specifications | Pack Size | Part Number | |
| 25 | Quartz, heat treated; Tissuquartz; 3-piece clear styrene, banded; meets NIOSH NEAT 2.0 protocol for NIOSH 5040 specifications | 50 | 225-401-25 |  |
| 37 | Quartz, heat treated; 3-piece clear styrene, banded; meets NIOSH 5040 specifications | 50 | 225-401 | |
| Cassette Opener, stainless steel, suitable for 25, 37, and 47-mm filter cassettes. Required for all SureSeal Cassettes. |
225-13-5B |  |
||

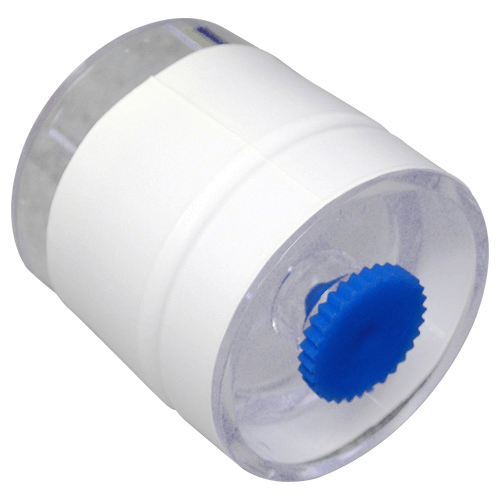

Preloaded Quartz Filters for NIOSH Method 7908
All SKC preloaded filters include supports and are in SureSeal leak-free cassettes that require a SureSeal Cassette Opener.
| Diameter (mm) | Filter and Cassette Specifications | Pack Size | Part Number | |
| 37 | Tissuquartz filter, 2-piece clear plastic casette, banded. For use with method NIOSH 7908. | 10 | 225-9033 |  |
| Cassette Opener, stainless steel, suitable for 25, 37, and 47-mm filter cassettes. Required for all SureSeal Cassettes. |
225-13-5B | |
||
 |
|
Coated Filter 225-9033 |
