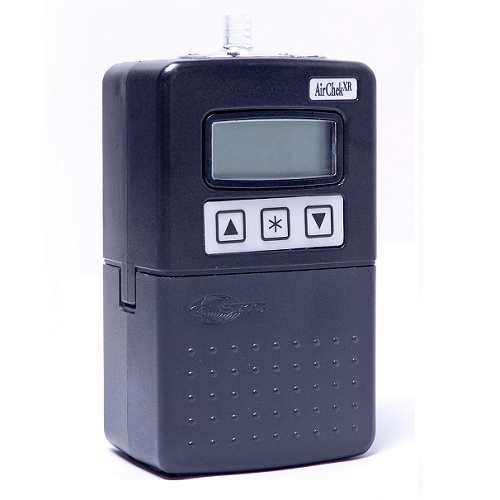

SKC AirChek XR5000 Pump

The SKC AirChek XR5000 sample pumps are design to offer users enhanced battery power and easy operation in a lightweight pump that provides accurate airflows from 5-5000 ml/min (5-500 ml/min requires a low flow adaptor kit). Two battery options are available which provides flexibility and economy for different users and different applications including long run times.

The AirChek XR5000 air sampling pump will operate for up to 40 hours

Capable of running for up to 40 hours at 2 L/min
Wide flow range from 5 to 5000 ml/min
2 interchangeable battery options
High capacity Li-Ion battery for extended run times
Patented, highly accurate electronic flow control system
Automatic temperature compensated flow
Simple operation with easy to use keypad
UL Approved for intrinsic safety
Pump running LED indicator
Programmable run times
Extended back pressure capability

The AirChek XR5000 is also available in basic pump, dust sampling, vapour/gas sampling and combined dust/vapour sampling kits.

Specifications

Flow System		Flow range: 1000 to 5000 ml/min, 5-500 ml/min with low flow adaptor Constant flow compensation provides constant flow within ±5% for accurate air volume Built-in replaceable particulate trap to prevent contamination of sample Flow fault icon appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Power Supply		High capacity rechargeable Li-Ion (4 cell) battery pack provides 40+ hours minimum run time at 2000 ml/min and up to 30 inches water back pressure Standard capacity rechargeable Li-Ion (2 cell) battery pack also available Low battery indication on LCD
Display		Continuously displays battery status and displays run times, pump status and flow
Certification		Intrinsic Safety: UL to Class I, Div 1, Groups A, B, C and D; Class II, Div 1, Groups E, F and G; Class III, Div 1
Temperature Range		Operating: 0 to 40°C (32 to 104°F) Charging: 0 to 45°C (32 to 113°F) Storage: -20 to 35°C (-4 to 95°F)
Case		Fitted with integral belt clip
Tubing Required		1/4" ID
Dimensions		High capacity (4 cell) Li-Ion model: 14.0 x 7.6 x 5.8 cm (5.5 x 3 x 2.3") Standard (2 cell) Li-Ion model: 10.9 x x 7.6 x 5.8 cm (4.3 x 3 x 2.3")
Weight		High capacity (4 cell) Li-Ion: 600 g (21.1 oz) Standard (2 cell) Li-Ion model: 450 g (15.9 oz)

AirChek XR5000 Pumps

AirChek XR5000 High Capacity (4 cell) Pump Kits

Description	Part Number
4 cell Pump Basic Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length Tygon tubing, and operating manual in a durable carry case	210-5001K
4 cell Five Pump Basic Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, and 5 operating manuals in a durable carry case	210-5001K5
4 cell Single Pump Dust Sampling Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, IOM Foams, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5001KP
4 cell Five Pump Dust Sampling Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, IOM Foams, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor and 5 operating manuals in a durable carry case	210-5001K5P
4 cell Single Pump Vapour Sampling Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker and an operating manual in a durable carry case	210-5001KV
4 cell Five Pump Vapour Sampling Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker and 5 operating manuals in a durable carry case	210-5001K5V
4 cell Single Pump Combined Sampling Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker, IOM Foams, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5001KC
4 cell Five Pump Combined Sampling Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker, IOM Foams, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor and 5 operating manuals in a durable carry case	210-5001K5C

AirChek XR5000 Standard Capacity (2 cell) Pump Kits

Description	Part Number
2 cell Pump Basic Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length Tygon tubing, and operating manual in a durable carry case	210-5002K
2 cell Five Pump Basic Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, and 5 operating manuals in a durable carry case	210-5002K5
2 cell Single Pump Dust Sampling Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, IOM Foams, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5002KP
2 cell Five Pump Dust Sampling Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5x 1 m lengths of Tygon tubing, IOM Foams, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor and 5 operating manuals in a durable carry case	210-5002K5P
2 cell Single Pump Vapour Sampling Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker and an operating manual in a durable carry case	210-5002KV
2 cell Five Pump Vapour Sampling Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker and 5 operating manuals in a durable carry case	210-5002K5V
2 cell Single Pump Combined Sampling Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker, IOM Foams, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5002KC
2 cell Five Pump Combined Sampling Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker, IOM Foams, 5 IOM Multidust samplers, 15 IOM Multidust cassettes and 5 operating manuals in a durable carry case	210-5002K5C

AirChek XR5000 Pump Accessories

Description	Part Number

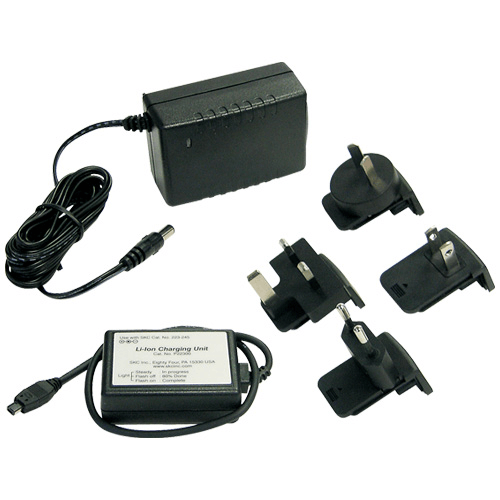

Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand	223-241
chek-mate flowmeter, 500-5000 ml/min (recommended) (Other Calibrators available , see Calibration)	375-0550

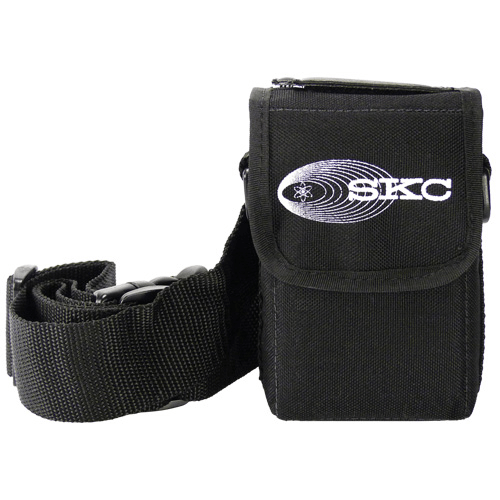

Black nylon pump pouch with adjustable waist belt and shoulder strap	224-88
Red nylon pump pouch with adjustable waist belt and shoulder strap	224-96A

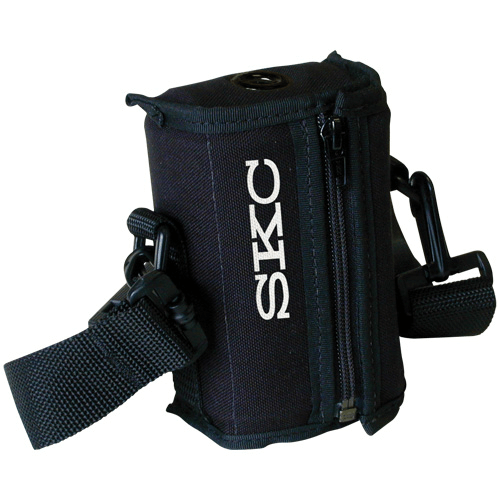

Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 55dBA (4-cell Li-Ion)	224-96C

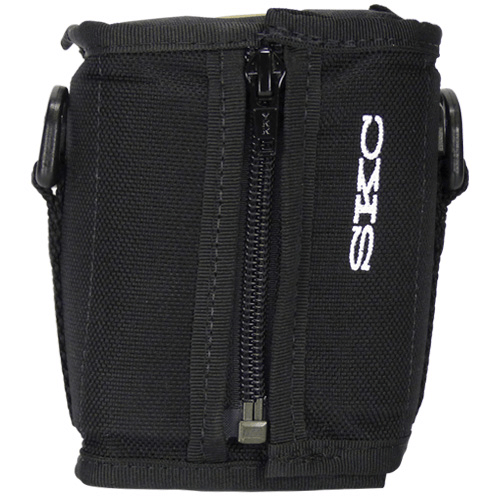

Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 55dBA (2-cell Li-Ion)	224-913
Single pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc	224-98
Five pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc	224-97B
Pelican Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-901
Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm).	224-907
Pelican Deluxe Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle. Larger version of 224-907 to accomodate more accessories. (LxWxH 55.9 x 45.5 x 26.5 cm).	224-910
Waist belt, extends up to 122 cm (48 inches).	224-12
Low Flow Adaptor kit allows the sample pump to sample with flow rates between 5 and 500 ml/min.	210-500

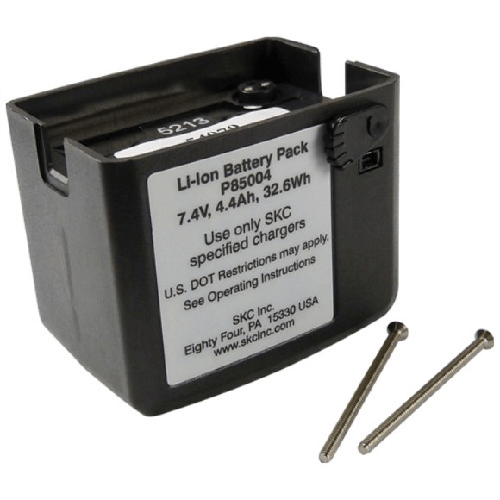

High Capacity (4 cell) Li-Ion Battery Pack	P85004A

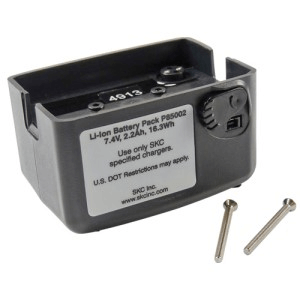

Standard Capacity (2 cell) Li-Ion Battery Pack	P85002A

223-241

224-88

224-96A

224-96C

224-913

224-98

224-97B

224-901

224-907

Pelican Deluxe Hard-sided Five Pump Case

224-910

224-12
