Gastec Injection Type Tubes

This uses an injector tube to sample gas samples, which is inserted into a detector tube to perform measurements. Detector tubes used for high concentration carbon dioxide and propane gases apply this feed-in method.

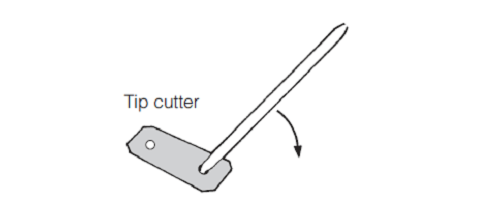

Stage 1 - Break off both ends of a detector tube

Stage 1 - Break off both ends
of a detector tube

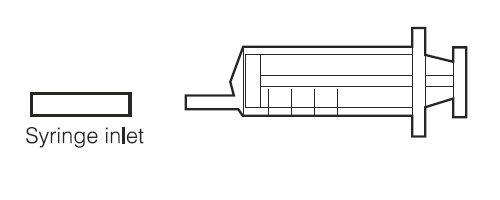

Stage 2 - Attach the syringe inlet to the syringe

Stage 2 - Attach the syringe
inlet to the syringe

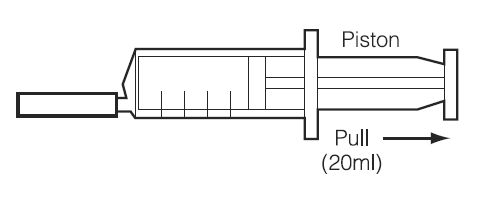

Stage 3 - Collect 20ml of sample into the syringe

Stage 3 - Collect 20ml of
sample into the syringe by
pulling its piston.

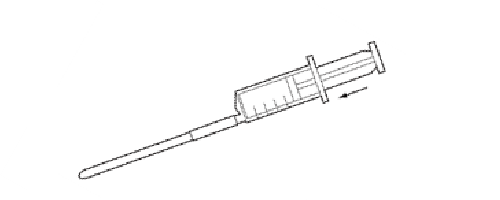

Stage 4 - Insert tube securely

Stage 4 - Insert tube securely
into the detector tube for
specified sampling time

Tubes are supplied in packs for 10 tests. Tubes must be used with the appropriate sringe - please contact SKC.

Click on the part number to view the specific datasheet.

Gastec Injection Type Tubes
Chemical Tube Name Measuring Range (ppm) Sampling Time (secs) Part Number
Carbon dioxide
CO2		 Carbon dioxide 10-100%  20 810-2HT
Propane
CH3CH2CH3		 Propane 0.1-2%  120 810-100B
