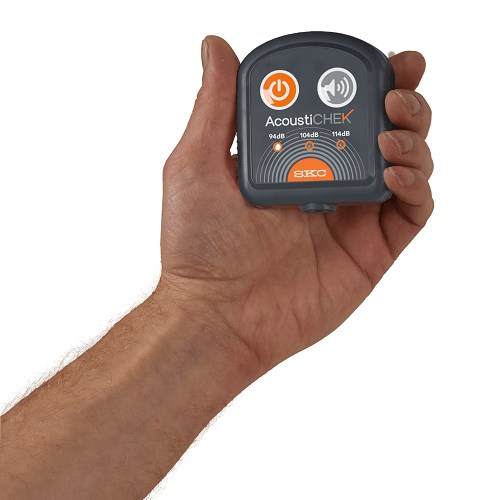

SKC AcoustiCHEK Acoustic Calibrator
The SKC AcoustiCHEK Calibrators are specifically designed to provide easy and accurate calibration of the SKC NoiseCHEK Dosemeter, SoundCHEK Essential Sound Level Meter and the SoundCHEK Connect Sound Level Meters.
- Easy to use interface
- Class 1 and Class 2 models available
- Three selectable outputs: 94, 104 and 114dB
- 70 hours operation on AA batteries

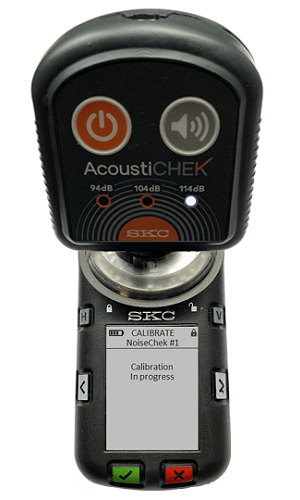

- Automatic calibration with the SKC SoundCHEK and NoiseCHEK instruments
- Supplied with a Certificate of Manufacturer's Calibration
- IEC60942:2017 compliant
Specifications
| Class 2 | Class 1 | ||
| Outputs | 94, 104 and 114dB | ||
| Calibration Frequency | 1kHz (±1.7%) | 1kHz (±0.7%) | |
| Accuracy/Tolerance | ±0.4dB | ±0.25dB | |
| Harmonic Distortion | <3% | <1/6% | |
| Operating Temperature Range | 10 to +40°C (32 to 104°F) | -10 to +50°C (14 to 122°F) | |
| Operating Time | 70+ hours | ||
| Battery | Alkaline AA | ||
| Standards | EC60942:2017, BSEN IEC 60942:2018, ANSI S1.40 2006 | ||
| Dimensions | 7.8 x 6.8 x 3.0 cm (3.1 x 2.7 x 1.2 in) | ||
| Weight | 130g (6.6 oz) | ||
AcoustiCHEK Calibrator
| Description | Pack Size | Part Number |
| AcoustiCHEK Class 2 Calibrator, includes AA batteries and Certificate of Manufacturer's Calibration | Each | 703-002 |
| AcoustiCHEK Class 1 Calibrator with built-in barometer, includes AA batteries and Certificate of Manufacturer's Calibration | Each | 703-001 |
Documentation
 |
|
AcoustiCHEK Manual |
