Impingers
Impingers, sometimes known as bubblers, are small bottles used with an air sample pump to collect airborne hazards into designated collection liquids for analysis. For personal exposure measurement the impinger mounts in a holster accessory near the breathing zone. For area monitoring the impinger is mounted on the side of a pump with a holder accessory. SKC offers impingers in Pyrex® glass or PFA (fluoropolymer) to meet your applications.
- Glass Impingers have graduations in 5ml increments and available with a fritted nozzle to increase contact between the air sample and the liquid.
- PFA impingers are unbreakable, inert to virtually all chemicals and perform well in high temperature and cryogenic applications.
SKC laboratory-quality glass impingers have graduations that are accurate to within ±0.5 ml for each increment. This helps reduce volumetric measurements required in the field and in the laboratory, while also saving time and money. Serial numbers on both sections assist with sample identification and proper part matching.
The Glass Midget impingers are available with a standard nozzle, or fritted nozzle (170 to 200 µm glass frit) which increases contact between the air sample and the liquid.
Spill-resistant Midget Impingers feature an outlet side arm that extends midway down the impinger with capacity for all liquid in the impinger.
| Description | Part Number | |

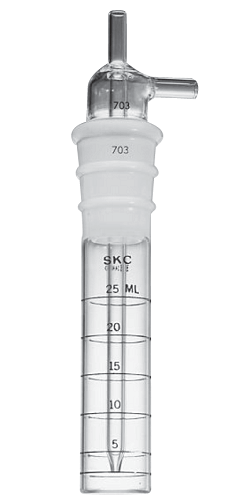

| Glass Midget Impinger, 25 ml, standard nozzle | 225-36-1 |  |

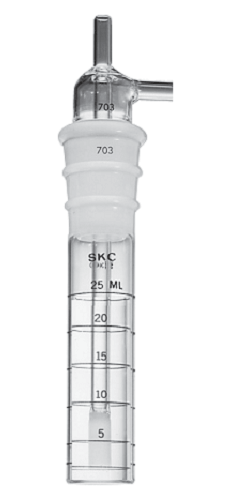

| Glass Midget Impinger, 25 ml, fritted nozzle | 225-36-2 |  |

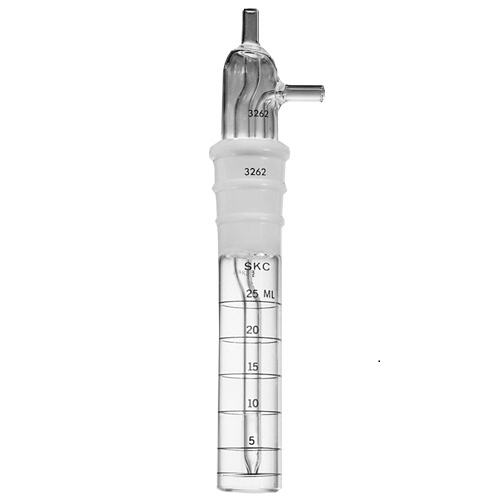

| Spill-resistant Glass Midget Impinger, 25 ml, standard nozzle | 225-36-4 |  |
| Spill-resistant Glass Midget Impinger, 25 ml, fritted nozzle | 225-36-5 |  |
Unbreakable Savillex 60 ml PFA impingers are an ideal alternative to glass impingers. PFA impingers are safe to use and are inert to virtually all chemicals and perform well in high-temperature and cryogenic applications. SKC offers Savillex PFA impingers with two different port configurations to meet your applications, including transfer caps and ferrule nuts to provide a leak-tight seal.
- Mechanically strong even at high temperatures
- Temperature resistant up to 260°C (500°F)
- Also suitable for cryogenic applications
- Chemically resistant to all common solvents
- Ultra-low levels of metallic and organic extractables
- Steralisable
- Autoclave, e-beam, ethylene oxide, or gamma radiation
- Low gas permeability
- Large 60 ml capacity
| Description | Part Number | |

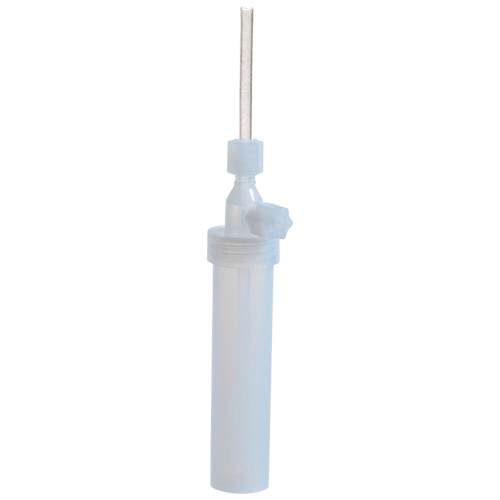

| PFA Impinger with a ¼ inch vertical port and a ¼ inch side port for horizontal connections | 225-0020 |  |

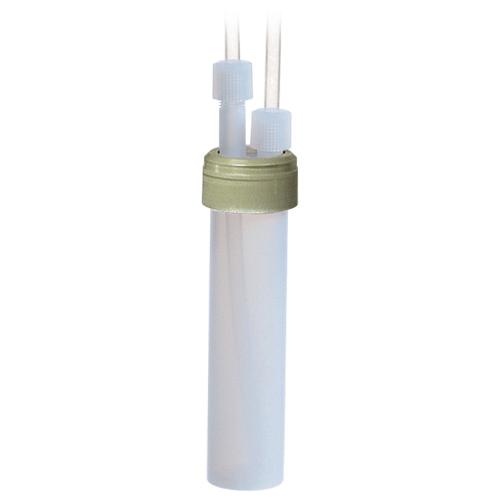

| PFA Impinger with two vertical ¼ inch ports for close assembly of sampling train | 225-0021 |  |

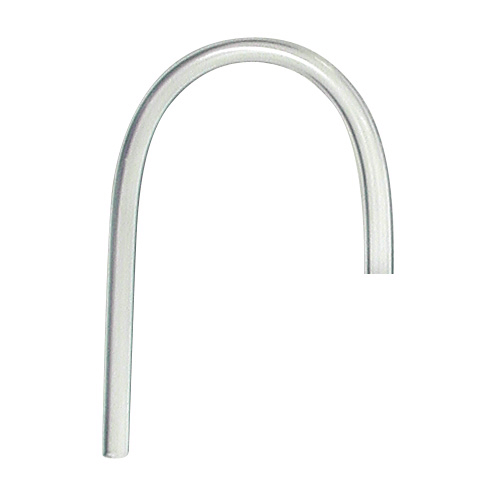

| 180 degree PFA Tube Bend, ¼ inch (6.35 mm) diameter x 8 inch (203 mm) length, used to connect two PFA impingers (Part Number 225-0021 only) | 225-0022 |  |

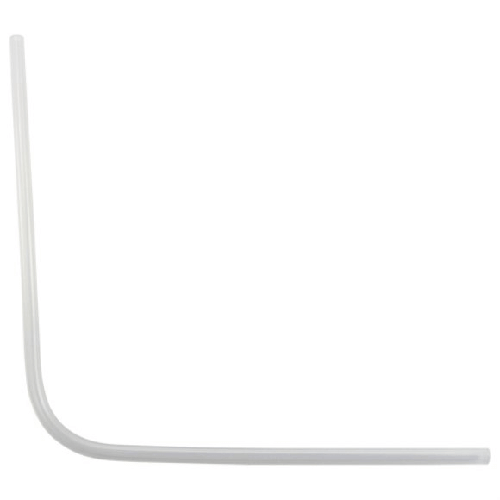

| 90 degree PFA Tube Bend, ¼ inch (6.35 mm) diameter x 6 inch (150 mm) length, used to connect a PFA impinger (Part Number 225-0020 only) to a sample pump | 225-0023 |  |

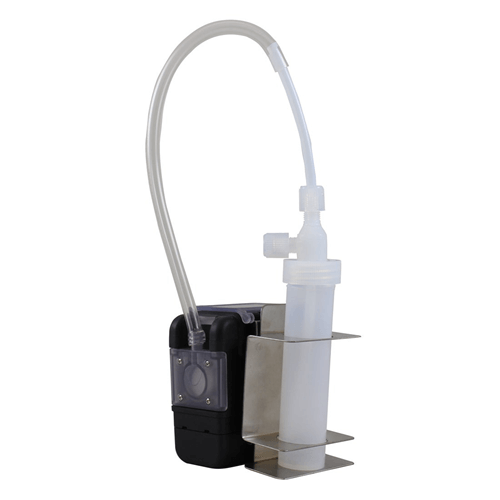

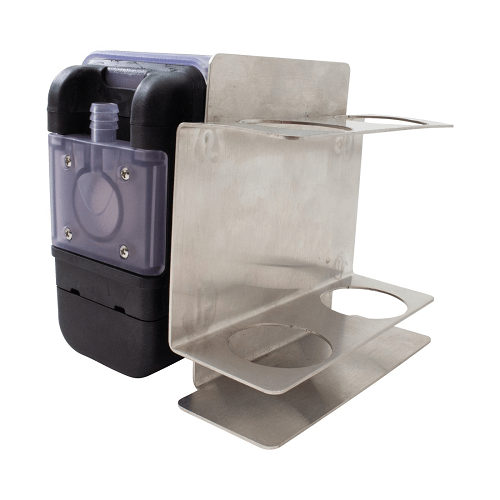

Vinyl holsters are supplied with a clip to attach to clothing, to ensure impinger is near the breathing zone. The stainless steel holders for area monitoring attach to high-volume air sample pumps. The single holder accommodates either an impinger or impinger trap; the double holder accommodates either two impingers for series operation or an impinger and trap.
| Description | Part Number | |

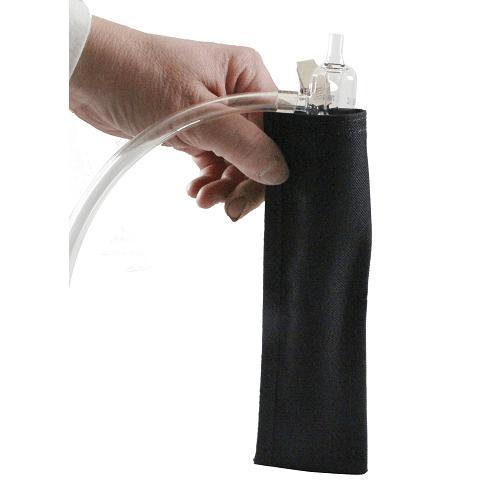

| Holster, thick polyester fabric with a clip for attachment to clothing. Suitable for Glass Midget Impingers only | 225-20 |  |

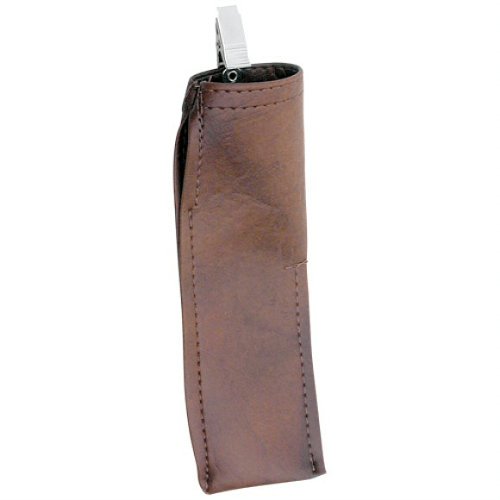

| Holster, vinyl fabric with clip for attachment to clothing. Suitable for PFA Midget Impingers only. | 225-0027 |  |

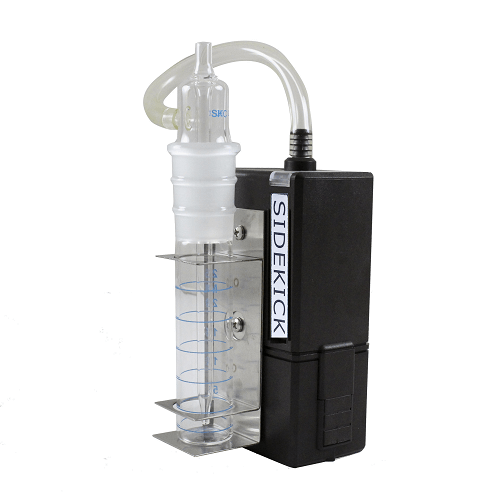

| Single Impinger Holder, suitable for glass impingers only, for 1 impinger or 1 trap. Stainless steel. For use with Sidekick or Universal Pumps. | 225-20-01 |  |
| Single Impinger Holder, suitable for glass impingers only, for 1 impinger or 1 trap. Stainless steel. For use with AirChek Essential+/Connect/Touch series pumps | 225-20-05 |  |
| Double Impinger Holder, suitable for glass impingers only, for 2 impingers, or 1 impinger and 1 trap. Stainless steel. For use with Sidekick or Universal pumps. | 225-20-02 |  |

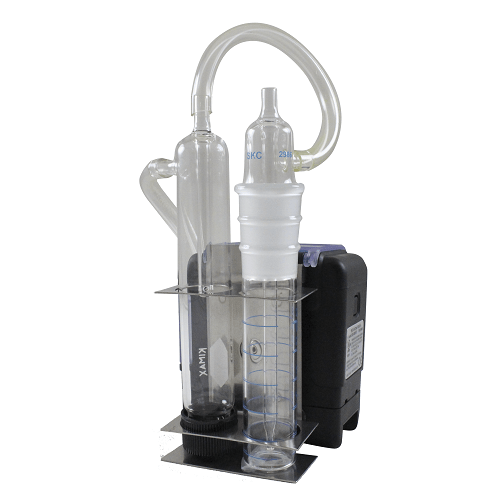

| Double Impinger Holder, suitable for glass impingers only, for 2 impingers, or 1 impinger and 1 trap. Stainless steel. For use with AirChek Essential+/Connect/Touch series pumps. | 225-20-03 |  |

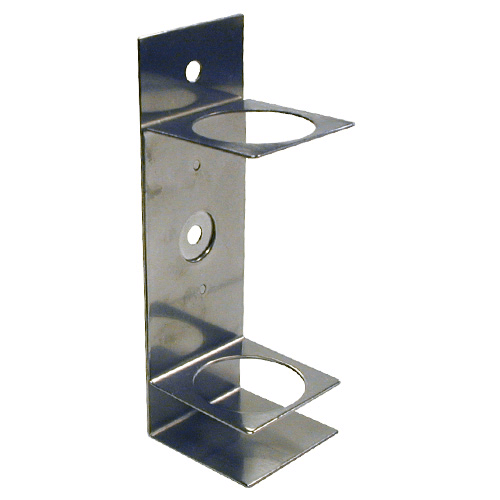

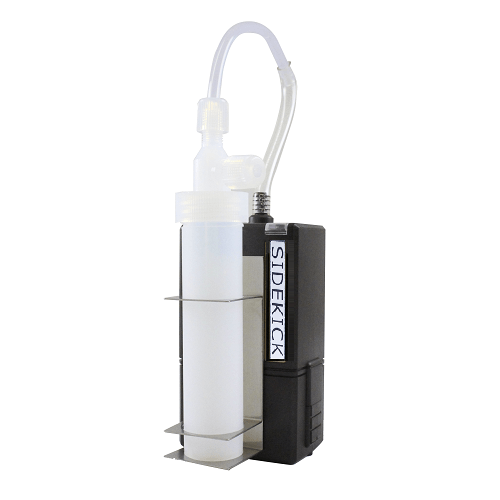

| Single Impinger Holder, suitable for PFA impingers only, for 1 impinger or 1 trap. Stainless steel. Note that this holder is larger than the 225-20-01 to hold the PFA impinger. | 225-0026 | |
A trap is is used with an impinger to prevent impinger liquid from being drawn into the sample pump. Solid sorbents may be added to the trap when using a volatile liquid to protect the pump chamber from vapours.
| Description | Part Number | |
| Glass trap for Glass Midget Impingers for area sampling | 225-22 |  |

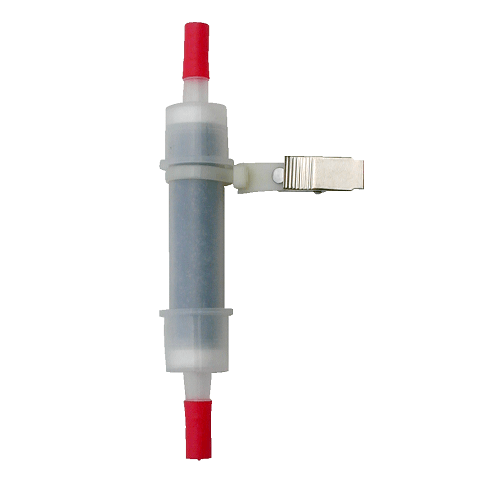

| In-line Plastic Traps with silica gel/activated charcoal sorbent, pk/3 | 225-22-01 |  |
| Replacement Trap Sorbent, 200 g, silica gel/activated charcoal | 225-22-02 |  |
 |
|
Impinger Trap |
