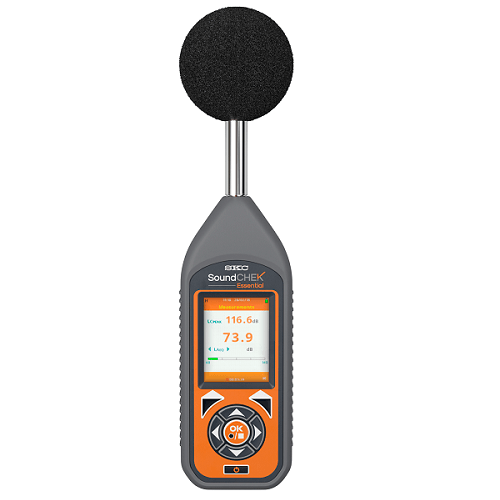

SKC SoundCHEK Essential Sound Level Meter
The highly accurate SoundCHEK Essential is exactly what you need to perform Noise At Work assessments and environmental noise monitoring. It is lightweight, simple to operate, durable with a large, full colour display and user-selectable measurement parameters.
- Highly intuitive operation
- Fast switching between applications
- User-selectable measurement parameters
- Reliable ½ inch microphone, available in Class 1 or Class 2
- Timer and datalogging included
- Large full colour display
- Powered by Alkaline AA batteries
- Ergonomic and lightweight
- Multi-language capability
- Free cloud-based app and PC-based software
Specifications
| Measuring Range | 25-140dB, peak 40 to 140dB | |
| Frequency Range | 20Hz to 20kHz | |
| Frequency Weighting | A, C, Z | |
| Response Time | Fast, Slow and Impulse | |
| Measurement Channels | 2 | |
| Exchange Rate | 3, 4, 5 and 6 | |
| Threshold Level | OFf, 70, 75, 80, 85dB | |
| Parameters | Lp, Leq, Lmax, Lmin, Peak, LAE, L10, L90 and 1 user-definable value | |
| Standards | Meets ANSI S1.4 2014, IEC61672-1:2013 Class 2 | |
| Languages | English UK and US, Chinese, French, German, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek | |
| Datalogging/Time History | 1 second to 24 hour interval options | |
| Memory Size | 1Mb | |
| Run Time | 12 hours | |
| Battery | 4 x AA alkaline | |
| Connectivity | USB | |
| Dimensions | 21 x 7.1 x 3 cm (8.3 x 2.8 x 3 in) including microphone | |
| Weight | 305g (10.7 oz) without batteries |
SoundCHEK Essential
| Description | Pack Size | Part Number |
| SoundCHEK Essential, includes Class 2 meter, rubber boot, 4 x AA batteries, USB cable, wrist Strap, windshield, USB drive with manual, protective carry case (requires calibration using AcoustiCHEK calibrator sold separately) | Each | 702-002 |
Other models of SoundCHEK are available including SoundCHEK Essential Class 1. Please contact SKC for more information.
Accessories
| Description | Pack Size | Part Number | |

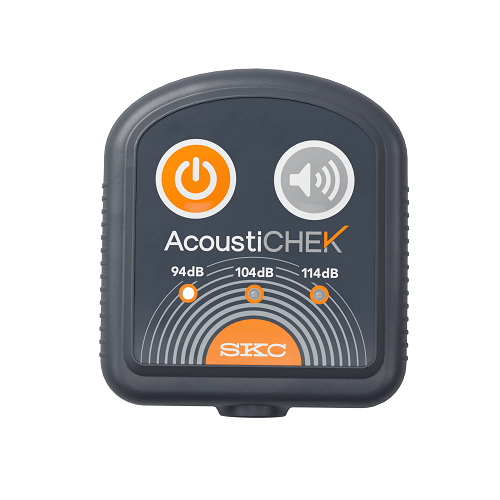

| AcoustiCHEK Class 2 Calibrator, includes AA batteries | Each | 703-002 |  |

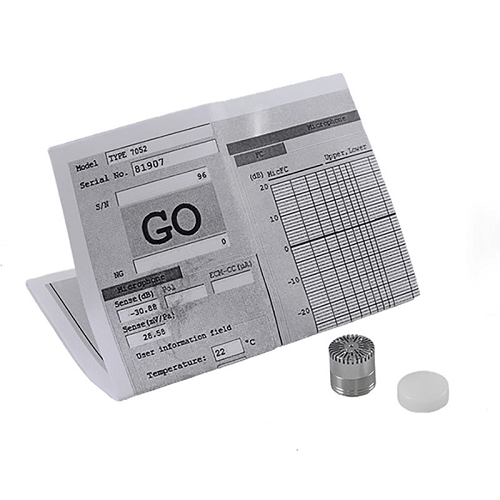

| Replacement Microphone, Class 2, ½ inch pre-polarised 25mV/Pa electret capsule | Each | 702-019 |  |

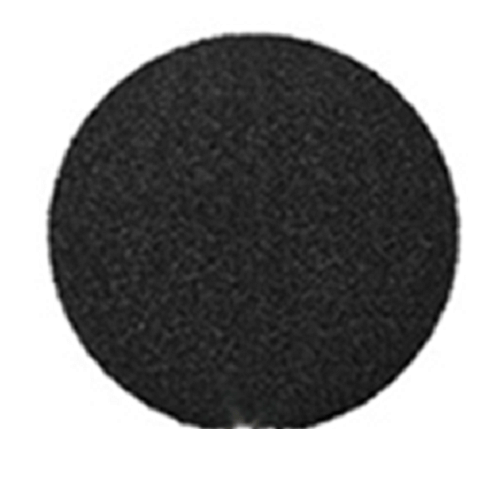

| Replacement Windshield, 5 cm (2.5 in) diameter for ½ inch microphone | Each | 702-016 |  |

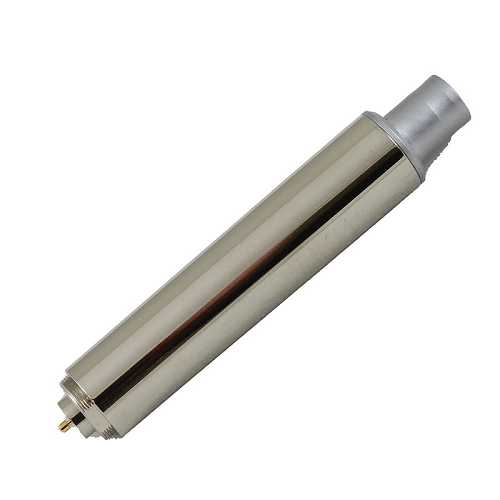

| Replacement SoundCHEK Essential Pre-amp Assembly | Each | 702-023 |  |
Documentation
 |
|
SoundCHEK Essential Manual |
