DataTrac® Pro Software for AirChek TOUCH
DataTrac® Pro for AirChek Touch provides pump and data management from your PC/laptop. Up to 5 AirChek Touch Sample Pumps in cradles can be simultaneously connected to your PC/laptop and DataTrac® Pro.
DataTrac® Pro software is only available by download (approximately 70Mb).
The software is easy to use - it has only 4 tabs.
Requirements
System Requirements
- Microsoft® Windows® Vista® (sp2), 7, 8, 8.1, 10 or 11 operating system
- Microsoft .NET Framework 4.5.1 and SKC USB Drivers (included with installer)
- Available USB 2.0 port
- 1024 x 768 minimum display resolution

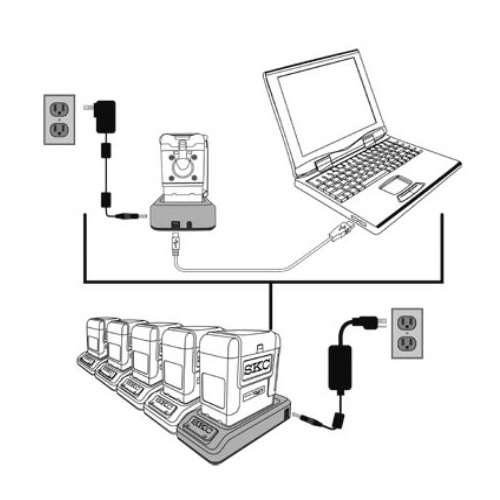

Hardware Requirements
- e-Cradle (Part Number 220-900*)
- Cradle Power Supply (Single- Part Number 220-600*, Multi- Part Number 220-700)
- USB 2.0A to Mini-B Cable*
- AirChek Touch Sample Pump
* These items are available in the DataTrac Interface and Software Kit (Part Number 877-93). Items can also be purchased separately.

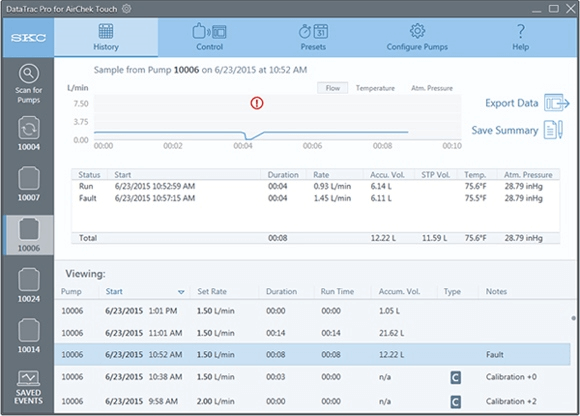

History Tab
From the History tab, you can
- Download and view pump sampling history at a glance.
- Get a quick overview of selected sampling events with the graphical display.
- View individual sampling events, including calibration.
- Save and export sampling data for reporting

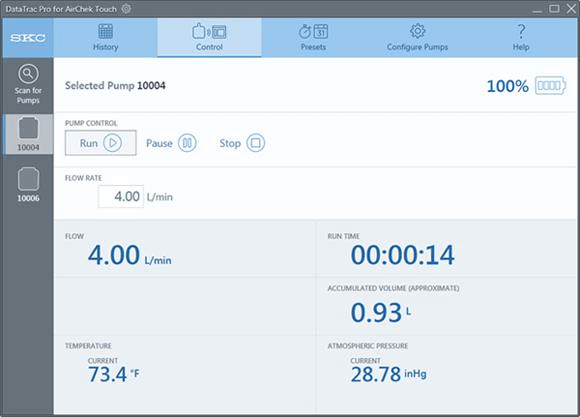

Control Tab
From the Control tab you can
- Monitor and control pump operation during sampling.

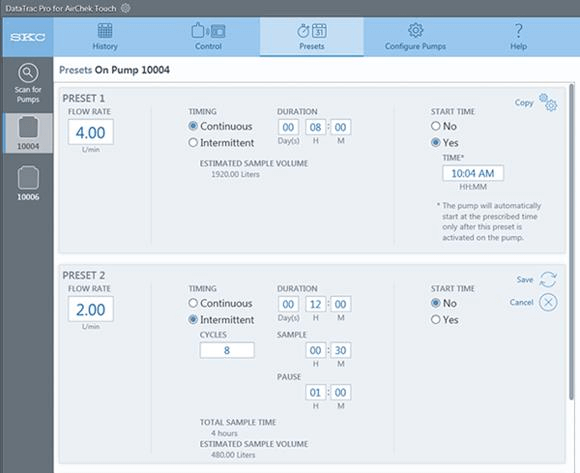

Presets Tab
From the Presets tab, you can
- Program sampling presets, including continuous and intermittent sampling, with or without start time.
- Copy presets to selected pumps.

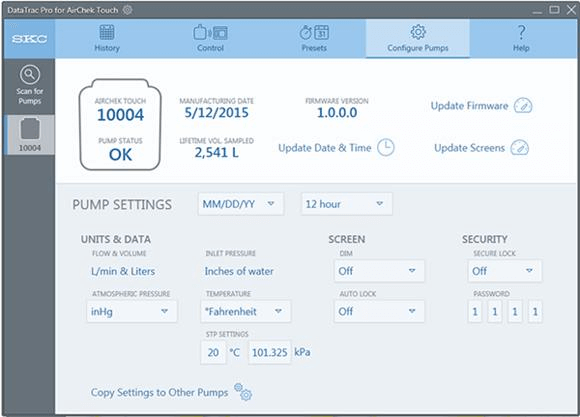

Configure Pumps Tab
From the Configure Pumps tab, you can
- Update firmware and adjust pump settings.
- View complete information from connected pumps, including a quick status check, manufacturing date, and lifetime volume.
- Copy pump settings to selected pumps.

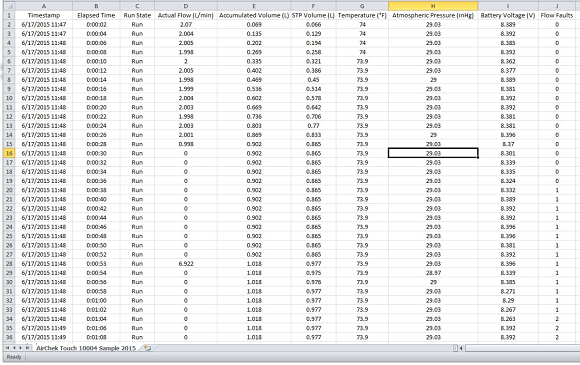

Exporting Data
The history data can be exported to an Microsoft Excel® spreadsheet:
Documentation
 |
|
DataTrac Pro Software |
