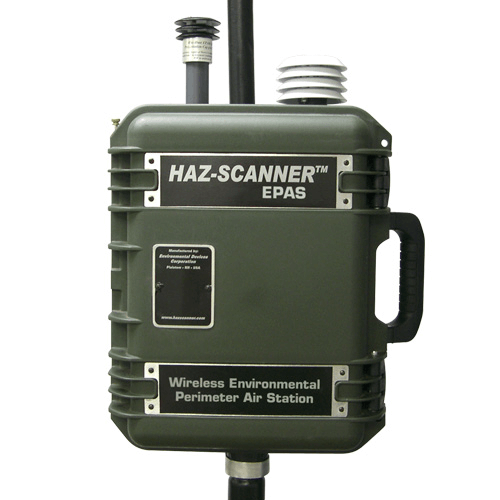

HAZ-SCANNER EPAS

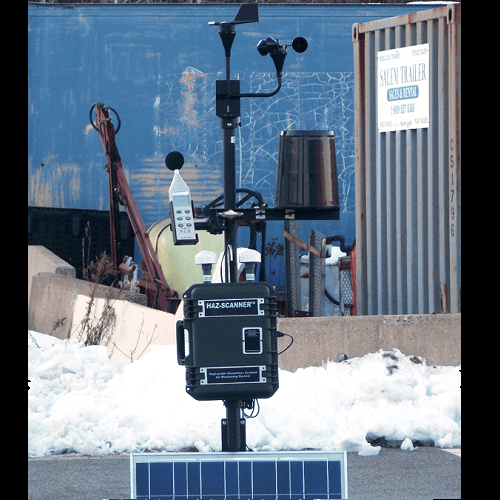

The portable HAZ-SCANNER EPAS is a true environmental air station providing ambient air quality monitoring of critical EPA criteria pollutants and air parameters. EPAS is the only instrument on the market to offer true simultaneous monitoring of PM10 and PM2.5. EPAS is available in two kits: Basic and build your own (Foundation). Both offer the ability to configure with different toxic chemical sensors, size-selective impactors, and EPAS-specific meters to simultaneously measure up to 14 critical air parameters. Several wireless and networking options are available as well as datalogging capabilities. Graphing and reporting software is compatible with PC and Mac.
HAZ-SCANNER Wireless EPAS Applications include:
- Ambient/urban air quality monitoring
- Hazardous incident response
- Waste site remediation/land reclamation monitoring
- Military/homeland security
- Perimeter monitoring

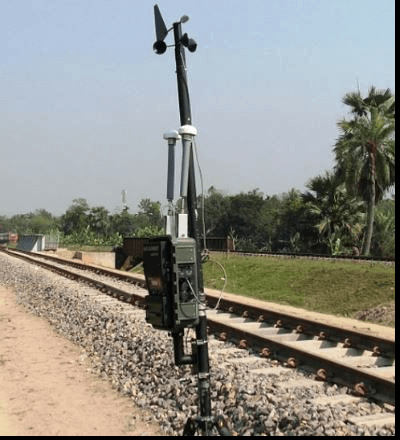

- Near roadway monitoring
| Display | LCD | |
| Operation | 4 key splashproof membrane switch | |
| Power | 12V Absorption Glass MAT (AGM) rechargeable battery | |
| Operating Time | 8 hours on battery, continuous on AC or optional solar panel | |
| Display Measurements | TWA, STEL, Max, Min | |
| Recording Time | 1 second to 21 weeks | |
| Sampling Rate | 1 second, 1 minute, 10 minute, 1 hour adjustable | |
| Data Storage | 454,545 data points | |
| Sampling Pump | 1-3 L/min | |
| Digital Output | RS232 (PC), RS423 (Mac) | |
| Software | PC or Mac compatible | |
| Dimensions | 15.2 x 35.6 x 25.4 cm (6 x 14 x 10 in) | |
| Weight | 5400 g (12 lbs) | |
| Operating Temperature | -5 to 50°C (23 to 122°F) | |
| Storage Temperature | -40 to 60°C (-4 to 140°F) | |
| Humidity | 95%, non-condensing (use inlet heater) | |
| Auxiliary Analogue Output | 0 to 2.5V DC ( channel for alternative meter) | |
| Communication Options |
|
| Description | Part Number |
| HAZ-SCANNER EPAS Basic Kit, includes:
PM10 impactor (measures TSP when no impactor is installed), CO sensor (0 to 10 ppm), NO2 sensor (0 to 5 ppm), EPAS system with internal sample pump and internal battery in a NEMA 4 enclosure* , universal battery charger (110-240 V AC, supplied with U.S., Euro, AUS, and UK adapter cables), external power connector cable, gas scrubber, precipitation/solar cap, impactor sleeve with compression plate and dust seal, and USB memory stick with instruction manual and HAZ-SCANNER Software. Basic EPAS can be expanded with up to 11 additional sensors - see below. |
770-500K1 |
| EPAS Foundation Kit, includes:
EPAS system with internal sample pump and internal battery in a NEMA 4 enclosure* , universal battery charger (110-240 V AC, supplied with U.S., Euro, AUS, and UK adapter cables), external power connector cable, and USB memory stick with instruction manual and HAZ-SCANNER Software. Requires configuration with up to 14 sensors - see below. |
770-500 |
* EPAS is for use in general electrical classified areas; the unit/sensors/meters are NOT intrinsically safe for hazardous environments.
| Sensor Category | Basic Kit Available Slots | Foundation Kit Available Slots |
| Particulate (PM) | 1 | 2 |
| Toxic Gas | 6 | 8 |
| Meters/Meteorological | 4 | 4 |
| Particulate Sensor | Range | Part Number |
| PM1.0 | 1μm | 770-531 |
| PM2.5 | 2.5μm | 770-532 |
| PM10 | 10μm | 770-530 |
| Gas Sensor | Technology | Range | Part Number |
| VOCs | PID | 0 to 50,000 ppb (0 to 50 ppm) | 770-543 |
| Ammonia NH3 | Electrochemical | 0 to 100 ppm | 770-555 |
| Carbon Dioxide CO2 | NDIR | 0 to 5000 ppm | 770-542 |
| Carbon Monoxide CO | Electrochemical | 0 to 10 ppm | 770-544 |
| Chlorine Cl2 | Electrochemical | 0 to 100 ppm | 770-552 |
| Ethylene Oxide C2H4O | Electrochemical | 0 to 1500 ppm | 770-558 |
| Methane CH4 | NDIR | 0 to 1%vol, 0-10,000 ppm, 0 to 20% lel | 770-549 |
| Hydrocarbons HC (non-Methane) | NDIR | Calibrated for 0 to 20% lel of selected gas | 770-550 |
| Hydrogen Chloride HCl | Electrochemical | 0 to 100 ppm | 770-556 |
| Hydrogen Cyanide HCN | Electrochemical | 0 to 100 ppm | 770-553 |
| Hydrogen Sulphide H2S | Electrochemical | 0 to 25 ppm | 770-554 |
| Nitric Oxide NO | Electrochemical | 0 to 5000 ppb | 770-551 |
| Nitrogen Dioxide NO2 | Electrochemical | 0 to 5000 ppb (0 to 5 ppm) | 770-545 |
| Nitric Oxide NO and Nitrogen Dioxide NO2 | Calculated values | 0 to 10,000 ppb | 770-551-1 |
| Oxygen O2 | Electrochemical | 0 to 30% vol | 770-546 |
| Ozone O3 | Metal Oxide Semiconductor | 0 to 150 ppb ( 0 to 0.15 ppm) or 0 to 500 ppb (0 to 0.5 ppm) |
770-547 |
| Phosphine PH3 | Electrochemical | 0 to 100 ppm | 770-557 |
| Sulphur Dioxide SO2 | Electrochemical | 0 to 5000 ppb (10 to 500 ppb for ambient applications) | 770-548 |
| Sensor | Technology | Range | Part Number |
| Rainfall/Precipitation | Rain Gauge | 0 to 25 cm (5 inches) daily | 770-540 |
| Temperature Relative Humidity (RH) |
NTC CAP |
-20 to 60°C (-40 to 140°F) 0 to 100% RH |
770-585 |
| Solar Radiance Intensity | Photodiode | 0 to 1800 W/square metre (W/m2) | 770-539 |
| Sound | Class 2 Sound Level Meter | 30 to 135 decibels (dB) | 770-580 |
| Atomic/Nuclear Radiation | Geiger Counter | 1 to 19,999 counts per minute (cpm) or 0.001 to 100 milliRad/hr | 770-534 |
| Wind Speed and Direction | 3 cup anemometer and continuous rotation potentiometric wind direction vane | Speed: 0 to 125 mph (0 to 55.9 m/s, 0 to 201 km/h) Direction: 5 to 355 degrees |
770-541 |
| Barometric Pressure* | Piezo Resistive | 28.25 to 30.75 in Hg | 770-533 |
| Dew Point Temperature** | Software calculation from RH and temperature | -16 to 50°C (3.2 to 122°F) | 770-535 |
* Due to its location this sensor also counts towards the maximum number of 'gas sensors', as well as the maximum number of 'meters/meteorlogical sensors'
** Software calculation - does not count towards the maximum number of 'meter/meteorlogical sensors'
| Description | Part Number |
| Rain Trap | 770-579 |
| Calibration Adaptor for Gas Sensor | 770-561 |
| Zeroing Accessory | 770-214 |
| Precipitation Cap | 770-578 |
| Transmitter for Use with Radio Modem - range 5 miles | 770-506 |
| Radio Modem - range 5 miles | 770-505X5 |
| Wireless Network Software | 770-507 |
| WiFi Server Transmitter - 2.4GHz frequency | 770-508 |
| GSM Module (Cellular Router) | 770-509 |
| Rotameter - 2 L/min | 770-514 |
| Acid Gas Scrubber | 770-513 |
| Particulate Calibration Standard | 770-515 |
| Impactor Sleeve | 770-516 |
| Impactor Grease | 770-211 |
| Conditioning Inlet Heater | 770-517 |

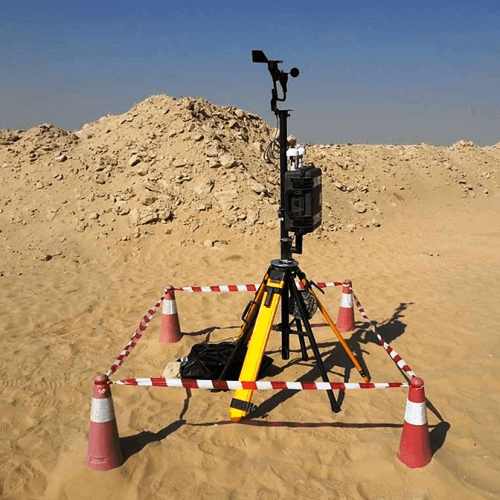

| Tripod Stand, 1 to 2 m (3 to 6 ft) | 770-518 |
| Tripod Stand - Extended Height | 770-518-E |
| Support Kit for Tripod Stand | 770-518-W |
| AGM Lead-Acid Battery Pack | 770-519 |
| Single Charger | 770-520 |
| External Power Connector Cable | 770-521 |
| Car Power Adaptor | 770-522 |
| External Backup Battery | 770-523 |
| External Backup Battery - Adaptor Cable | 770-524 |
| External Backup Battery - Single Charger | 770-525 |
| Solar Panel - 100W | 770-526 |
| External Audible and Visual Alarms | 770-527 |
| Ethernet Connection Cable | 770-528 |
 |
 |
 |
||
|
