Plastic Cyclone

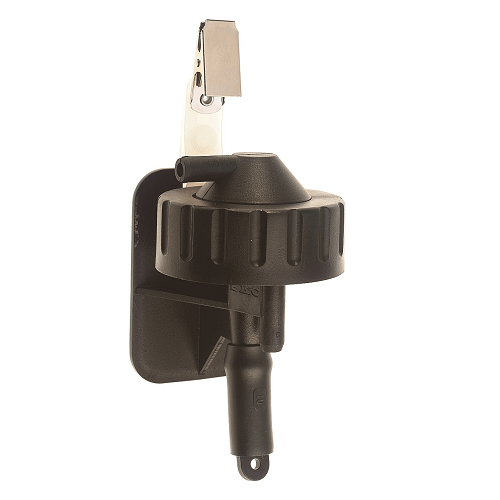

The SKC Plastic Cyclone is a lightweight conductive plastic unit that holds a collection filter in a reusable cassette during sampling. The cyclone is designed to sample respirable dust as per MDHS 14/4 and the BS EN 481 criteria. When attached to a suitable sample pump respirable particles collect on the filter and larger particles fall into the grit pot, at the base, to be discarded. It is designed for a 50% cut-point of 4.0 µm at 3.0 L/min. The static-dissipating cyclone features a snap-together cassette system and is used at 3.0 L/min flow with a 25 mm or 37 mm cyclone cassette. It includes a grit pot. The SKC Plastic Cyclone 25mm (225-69) is similar to the the Higgins-Dewell design cyclone (2.2 L/min) but operates at 3.0 L/min.
The SKC Plastic Cyclone has been assessed against the respirable convention, described in BS EN 481 by the Health & Safety Laboratory, UK. A copy of the Certificate of Conformity is included with each cyclone.
| Flow Rate | 3.0 L/min | |
| 50% Cut-point | 4 µm at 3.0L/min | |
| Material | Conductive plastic | |
| Tubing | 1/4inch (6.25 mm) ID |
| Description | Pack Size | Part Number |
| Plastic cyclone with 25 mm plastic cassette and grit pot | Each | 225-69 |
| Plastic cyclone with 37 mm plastic cassette and grit pot | Each | 225-69-37 |
| Description | Pack Size | Part Number | |
| Cyclone cassette 25 mm for use with 225-69 | Each 500 |
225-62 225-62-500 |
 |
| Cyclone cassette 37 mm for use with 225-69-37 | Each | 225-62-37 | |
| Rubber grit pots | 10 | 225-64 |  |
| Stainless steel grids without tab 25 mm for use with 225-69 | 10 | 225-66 |  |
| Stainless steel grids without tab 37 mm for use with 225-69-37 | 10 | 225-66-37 | |
| Filter transport case for 25 mm filters, conductive plastic | 10 | 225-67-10 |  |
| Set of 3 O-Rings for Plastic Cyclone | Set | P22569 |  |
 |
|
