Spotlight on...

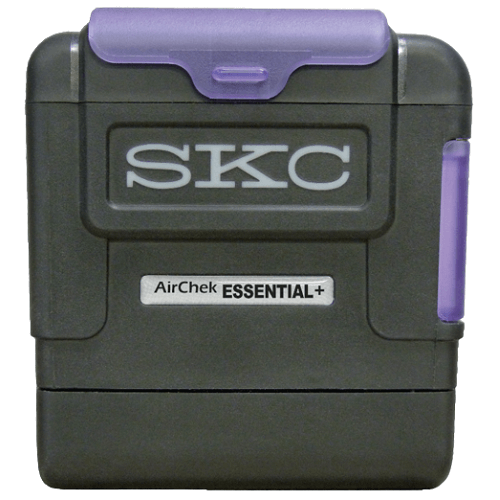

SKC AirChek ESSENTIAL⁺ Pump

The SKC AirChek ESSENTIAL⁺ is a simple and intuitive, on/off sample pump with graphical display and touch screen navigation. No calibration adjustment tools or manual needed. All the essentials for simple, accurate air sampling.

AirChek Essential+ Pump - simple operation touch screen sample pump

Compact, lightweight design
Ultra-quiet
Extended flow range, 5 to 5000 ml/min, suitable for dust sampling and vapour sampling
High back pressure compensation- up to 50 inches water at 2 L/min
Powerful Li-ion battery for long run times - over 40 hours
Patented* isothermal internal flow sensor
Flow fault and auto-restart

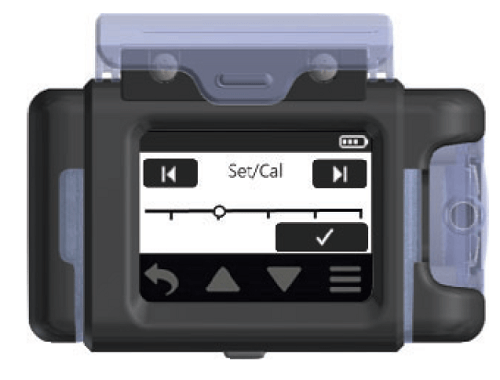

High contract backlit touchscreen LCD with screen lock-out feature
Displays elapsed time and battery status
Highly visible pump run and fault status LEDs
Tough non-slip anti-static case
IECEx, UKEX, UL and ATEX approved

* US Patent No. 5,892,160

Specifications

Flow System		Flow range: 1000 to 5000 ml/min, 5-500 ml/min with low flow adaptor Constant flow compensation provides constant flow within ±5% for accurate air volume Flow fault appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Flow Compensation Range		5000 ml/min at 20 inches water back pressure 4000 ml/min at 30 inches water back pressure 3000 ml/min at 40 inches water back pressure 2000 ml/min at 50 inches water back pressure 1000 ml/min at 60 inches water back pressure
Power Supply		Removable, rechargeable Li-ion battery pack provides 40 hours minimum run time at 2000 ml/min, 15+ hours at 5000 ml/min, and up to 50 inches water back pressure Charging Time: Approximately 3 hours, depending on battery capacity and level of discharge On screen battery status display Link up to 5 charging cradles using one power supply Indefinite run time from charging cradle
Display		Displays elapsed sampling time and battery status Monochrome touch screen Screen lock-out feature
Temperature Range		Operating: 0 to 40°C (32 to 104°F) Charging: 0 to 45°C (32 to 113°F) Storage: -20 to 45°C (-4 to 113°F)
Case		Recessed connector for 1/4" ID tubing Durable polycarbonate case Rubberised anti-static overmoulding Large belt clip
Certification		Intrinsic safety when used with SKC battery pack model P75718: UL Class I, Groups A, B, C and D;Class II, Groups E, F, and G;Class III, T4; Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga; -20°C ≤ Ta ≤ 45°C; Ex II 1G Exia IIC T4 Ga; IECEx UL 19.0100; DEMKO 19ATEX 2288; UL22UKEX2351; CE 0539; UKCA 0843 RoHS compliant Designed to meet ISO 13137:2022
Tubing		1/4" ID
Dimensions		10.4 x 9.4 x 7.1 cm (4.1 x 3.7 x 2.8")
Weight		550 g (19.4 oz)

AirChek ESSENTIAL⁺ Pump

Description	Part Number
AirChek ESSENTIAL+ Pump with Li-Ion battery pack, Start-up Guide and mini screwdriver kit Requires charging cradle and power supply; see kits or cradles below	220-3100

AirChek ESSENTIAL⁺ Pump Kits

Description	Part Number
AirChek ESSENTIAL+ Basic Kit includes, AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, Lite Charging Cradle, power supply with cord, Step by Step Guide and Start-up Guide, and 1 m length Tygon tubing in a durable carry case	220-3100K
AirChek ESSENTIAL+ 5-Pump Basic Kit includes, 5 AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, 5 Lite Charging Cradles, power supply with 5-way splitter, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides and Start-up Guides in a durable carry case	220-3100K5
AirChek ESSENTIAL+ Single Pump Dust Sampling Kit includes, AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, Lite Charging Cradle, power supply with cord, Plastic IOM Multidust Sampler, 5 plastic IOM Multidust cassettes, Calidaptor, 1 m length of Tygon tubing and Step-by-Step Guide and Start-up Guide in a durable carry case	220-3100KP
AirChek ESSENTIAL+ 5-Pump Dust Sampling Kit includes, 5 AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, 5 Lite Charging Cradles, power supply with 5-way splitter, 5 Plastic IOM Multidust Sampler, 15 plastic IOM Multidust cassettes, Calidaptor, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides and Start-up Guides in a durable carry case	220-3100K5P
AirChek ESSENTIAL+ Single Pump Vapour Sampling Kit includes, AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, Lite Charging Cradle, power supply with cord, All-In-One Adjustable Tube Holder, tube cover, tube breaker, 1 m length of Tygon tubing and Step-by-Step Guide and Start-up Guide in a durable carry case	220-3100KV
AirChek ESSENTIAL+ 5-Pump Vapour Sampling Kit includes, 5 AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, 5 Lite Charging Cradles, power supply with 5-way splitter, 5 All-In-One Adjustable Tube Holders, 5 tube covers, tube breaker, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides and Start-up Guides in a durable carry case	220-3100K5V
AirChek ESSENTIAL+ Single Pump Combined Sampling Kit includes, AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, Lite Charging Cradle, power supply with cord, plastic IOM Multidust Sampler, 5 plastic IOM Multidust cassettes, Calidaptor, All-In-One Adjustable Tube Holder, tube cover, tube breaker, 1 m length of Tygon tubing and Step-by-Step Guide and Start-up Guide in a durable carry case	220-3100KC
AirChek ESSENTIAL+ 5-Pump Combined Sampling Kit includes, 5 AirChek ESSENTIAL+ Pump with Li-Ion battery pack, mini screwdriver kit, 5 Lite Charging Cradles, power supply with 5-way splitter, 5 plastic IOM Multidust Sampler, 15 plastic IOM Multidust cassettes, Calidaptor, 5 All-In-One Adjustable Tube Holders, 5 tube covers, tube breaker, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides and Start-up Guides in a durable carry case	220-3100K5C

AirChek ESSENTIAL⁺ Pump Accessories

Description	Part Number
Lite Charging Cradle, requires power supply, see below	220-850
Single Cradle Power Supply, for use with Lite Charging Cradle	220-600
Multi Cradle Power Supply with Splitter, for use with 2 to 5 Lite Charging Cradles	220-851
chek-mate flowmeter, 500-5000 ml/min (recommended) (Other Calibrators available , see Calibration)	375-0550
Black Nylon Pump Case with adjustable waist belt and shoulder strap	224-911
Single Pump Case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc (LxWxH: 37.9 x 23.4 x 10.0 cm)	224-98A
Five Pump Case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc (LxWxH 48.0 x 35.5 x 18.0 cm)	224-97C
Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-901
Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm).	224-914
Waist belt, extends up to 122 cm (48 inches).	224-12
Low Flow (5 to 500 ml/min) Kit includes All-in-One Adjustable tube holder and Type A protective tube cover	210-500
Replacement Battery Pack, Li-Ion	P75718
Single Impinger Holder, suitable for glass impingers only, for 1 impinger or 1 trap. Stainless steel. For use with AirChek Essential+/Connect/Touch series pumps	225-20-05
