Gastec Airtec Tubes

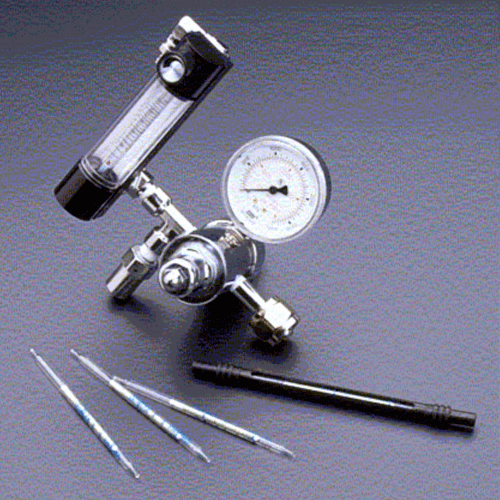

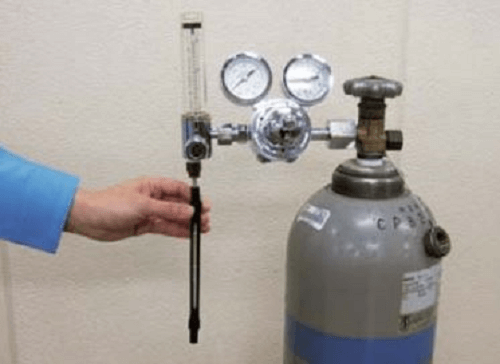

The Airtec Tube is a convenient, economical system for testing the quality of compressed breathing air. Measurement is quick and simple and does not require user training or calibration. Just snap off both pre-scored ends of the tube, insert the tube into the tube holder with the directional arrow pointing down, and adjust the flowmeter to the specified flow rate. After the required time, note where the colour stain stops and immediately take the measurement from the direct-reading tube.
Tubes are supplied in packs of 10.
A kit for measuring compressed breathing air for impurities is available, using the carbon monoxide, carbon dioxide, water vapour and oil mist Airtec tubes.
Click on the part number to view the specific datasheet.
| Chemical | Tube Name | Measuring Range (ppm) | Flow Rate (ml/min) | Sampling Time (mins) | Part Number |
| Carbon monoxide CO |
Carbon monoxide Airtec tube | 5-50 | 100 | 3 | 810-1A |
| Carbon dioxide CO2 |
Carbon dioxide Airtec tube | 250-3000 | 100 | 5 | 810-2A |
| Carbon dioxide Airtec tube | 200-3000 | 100 | 1.5 | 810-2AG | |
| Water vapour H2O |
Water vapour Airtec tube | 500-5000 | 300 | 1 | 810-6AH |
| Water vapour Airtec tube | 20-80 mg/m3 | 100 | 5 | 810-6A | |
| Water vapour Airtec tube | 150-3000 mg/m3 | 300 | 1 | 810-6AG | |
| Nitrogen oxides NO + NO2 |
Nitrogen oxides Airtec tube | 0.06-2 0.02-0.7 |
100 100 |
2 5 |
810-11A |
| Oil mist | Oil mist Airtec tube | 0.2-5 mg/m3 | 1000 | 20 | 810-109AD |
| Oil mist Airtec tube | 0.3-1.5 mg/m3 | 1000 | 60 | 810-109A |
Note: Unless used in 810-CG-1 Compressed Breathing Air System, Airtec tubes require a pressure regulator with a flowmeter - not available from SKC Limited.
| Description | Part Number | |
| Rubber tube holder/shroud | 810-357 |  |
| Tube Tip Breaker, safely breaks tube tips and stores up to 260 broken tube tips. | 810-722 |   |
 |
|
