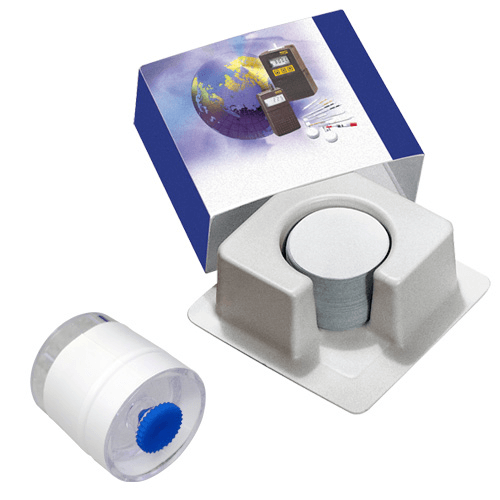

GLA 5000 PVC Membrane Filters
GLA-5000 PVC Membrane Filters are suitable for sampling silica, metals, and dust.
- Suitable for multiple NIOSH/OSHA/ASTM air sampling methods
- Silica, metals, dust
- Meets OSHA Method ID-215 (V. 2) for hexavalent chromium
- Low tare weight and moisture pickup for gravimetric stability
- <0.5% after 24 hours at 48 %RH and 50°C (122°F)
- Preloaded 25 and 37 mm cassettes available
- 25 mm cassettes are convenient for sampling inside a welding helmet
- Both gravimetric and chemical analysis on the same filter using NIOSH 7300 or 7301 for metals (elements)
PVC Cassette for Welding
Use 25 mm preloaded PVC filter part number 225-8214 or 225-8215 for sampling welder exposure to hexavalent chromium as specified in OSHA Method ID-215 (V. 2). The smaller cassette fits more easily under a welder’s helmet. For ultimate comfort, use the Face Level Sampling Headset or the Helmet Adaptor (part number 225-600).
| Diameter (mm) | Pore Size (µm) | Support Pad included † | Notes | Pack Size | Part Number | |
| 25 | 5.0 | No | Recommended for use with the IOM Sampler and the Button Sampler | 100 | 225-5-25 |  |
| 37 | 5.0 | Yes | 100 1000 |
225-5-37-P 225-80601K |
 |
|
| 37 | 5.0 | No | 100 | 225-5-37 | |
|
| 47 | 5.0 | No | 100 | 225-5-47 | |
† Filter supports available
All SKC preloaded filters include supports and are in SureSeal leak-free cassettes that require a SureSeal Cassette Opener.
| Diameter (mm) | Cassette Description | Filter Specification | Pack Size | Part Number | |
| 25 | Clear styrene, 2-piece, banded | 5.0 µm | 50 | 225-8214 |  |
| 25 | Clear styrene, 2-piece, double banded (pre-banded with an additional band placed around the inlet/outlet port plugs) | 5.0 µm | 50 | 225-8214DB |  |
| 25 | Clear styrene, 3-piece, banded | 5.0 µm | 50 | 225-8215 |  |

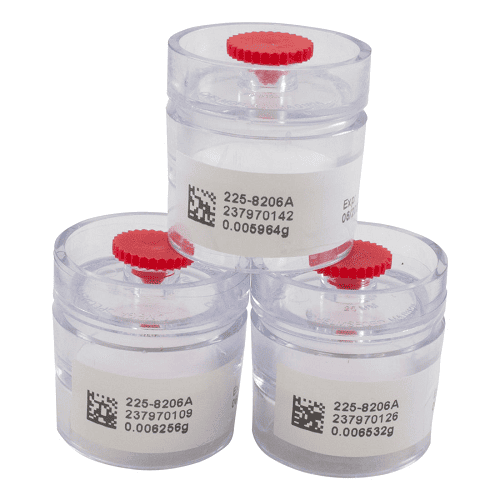

| 25 | Clear styrene, 2-piece, banded | 5.0 µm, preweighed 5 decimal | 50 | 225-8206A |  |

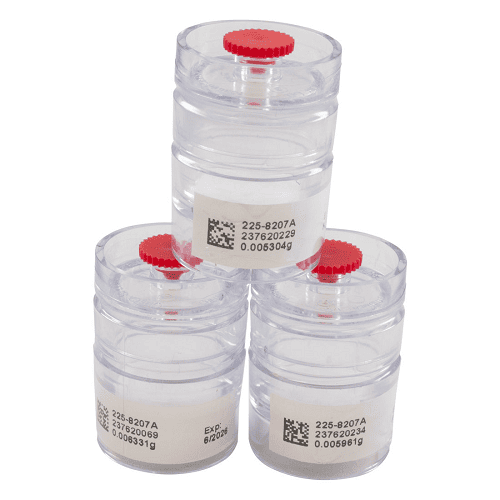

| 25 | Clear styrene, 3-piece, banded | 5.0 µm, preweighed 5 decimal | 50 | 225-8207A |  |
| 37 | Clear styrene, 2-piece, banded | 5.0 µm | 50 | 225-802 |  |
| 37 | Clear styrene, 3-piece, banded | 5.0 µm | 50 | 225-803 | |
| 37 | Clear styrene, 3-piece, double banded (pre-banded with an additional band placed around the inlet/outlet port plugs) | 5.0 µm | 50 | 225-803DB |  |
| 37 | Clear styrene, 3-piece, unbanded | 5.0 µm | 50 | 225-803NB | |

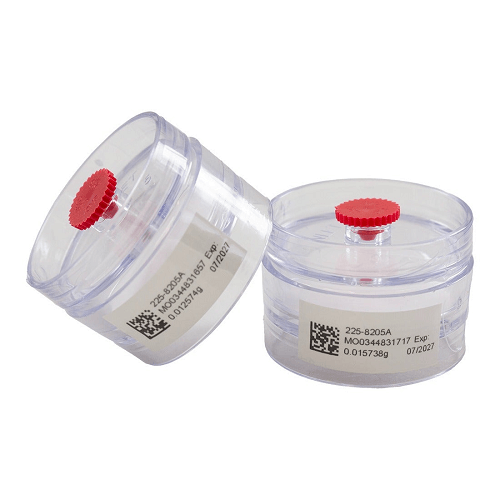

| 37 | Clear styrene, 2-piece, banded | 5.0 µm, preweighed 5 decimal | 10 50 |
225-8204A 225-8205A |
 |
| 37 | Clear styrene, 3-piece, banded | 5.0 µm, preweighed 5 decimal | 10 50 |
225-8208A 225-8209A |
|

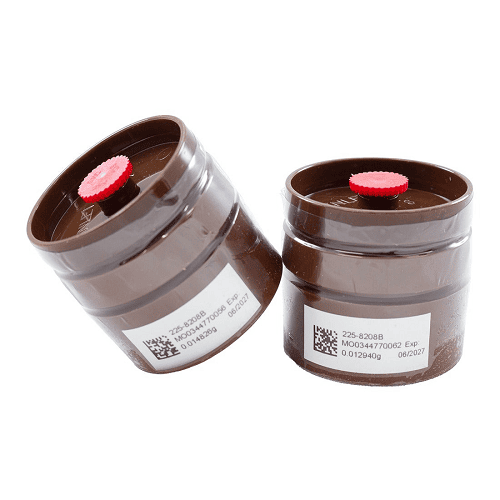

| 37 | Brown, opaque, 3-piece, banded | 5.0 µm, preweighed 5 decimal | 10 | 225-8208B |  |
| Cassette Opener, stainless steel, suitable for 25, 37, and 47-mm filter cassettes. Required for all SureSeal Cassettes. |
Each | 225-13-5B |  |
||
Clear plastic capsules heat-sealed to a filter which fit between parts of a 2-piece cassette with support pad, and prevent cassette wall losses. See Cassette Inserts.
| Diameter (mm) | Specification | Pack Size | Part Number | |
| 37 | Contains GLA-5000 PVC membrane filter, 5.0 µm pore size, for collection of fibrous and static dust for gravimetric analysis | 60 | 225-8516GLA |  |
| Diameter (mm) | Cassette Description | Specification | Pack Size | Part Number | |
| 37 | Filter Pairs only, not preloaded in cassettes | 5.0 µm, matched-weight within 25 µg, not preloaded in cassettes, filter pairs only | 50 | 225-8222 |  |
| 37 | Clear styrene, 2-piece, banded | 5.0 µm, matched-weight within 25 µg | 50 | 225-8201 | |
| 37 | Clear styrene, 3-piece, banded | 5.0 µm, matched-weight within 25 µg | 50 | 225-8202 | |
| Cassette Opener, stainless steel, suitable for 25, 37, and 47-mm filter cassettes. Required for all SureSeal Cassettes. |
Each | 225-13-5B | |
||
 |
|
Effect of Heat on PVC Filters |
