Charcoal Sorbent Tubes

This sorbent has a high surface area for sampling a broad range of primarily non-polar compounds.

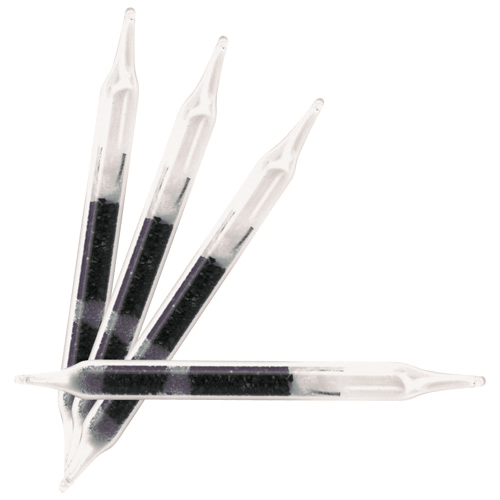

Charcoal Tubes
Charcoal Tubes

To select a tube for a specific compound refer to the SKC Sampling Guides or use our SKC online Hazard Database

Sorbent
(coating)
Size (mm)
ODxLength
Sections Sorbent
(mg)
Ends Tube
Cover
Separators Pack
Size
Part Number
Anasorb CSC, Coconut Charcoal 6 x 70  2 100/50 GS  A    FFW 10 226-01A
Anasorb CSC, Coconut Charcoal 6 x 70  2 100/50 GS  A    FFW 50 226-01
Anasorb CSC, Coconut Charcoal 6 x 70  2 100/50 GS  A    FFW 1000 226-01-BULK
Anasorb CSC, Coconut Charcoal 6 x 70  2 100/50 GS  A    WWW 50 226-01GWS
Anasorb CSC, Coconut Charcoal 8 x 110  2 400/200 GS  B    FWW 50 226-09
Anasorb CSC, Coconut Charcoal 8 x 110  2 400/200 GS  B    FWW 500 226-09-500
Anasorb CSC, Coconut Charcoal 8 x 110  2 400/200 GS  B    FWW 1000 226-09-BULK
Anasorb CSC, Coconut Charcoal 8 x 150  3 350/350/350 GS  C    WWWW 50 226-09-02
Anasorb CSC, Coconut Charcoal 10 x 110  2 800/200 GS  C    FFW 50 226-16
Anasorb CSC, Coconut Charcoal 10 x 160  2 1800/200 GS  D    FFW 50 226-16-02
Anasorb CSC, Coconut Charcoal

Anasorb CSC, Coconut Charcoal
(set of 2 tubes)
8 x 110



8 x 110
 1



 1
200



400
GS



GS
 D    WW



 WW
50 Sets 226-25
Anasorb CSC, Coconut Charcoal

Anasorb CSC, Coconut Charcoal
(set of 2 tubes)
8 x 110



8 x 110
 1



 1
200



400
GS



GS
 D    FW



 FW
50 Sets 226-37
Anasorb CSC, Coconut Charcoal (potassium hydroxide) 6 x 70  2 100/50 GS  A    WRWW 50 226-67
Anasorb CSC, Coconut Shell Charcoal (t-butylcatechol) 6 x 70  2 100/50 GS  A    WWW 50 226-73
Anasorb CSC, Coconut Charcoal (t-butylcatechol) 8 x 110  2 400/200 GS  B    WWW 20 226-196
JXC Charcoal 8 x 150  2 630/315 GS  C    FFW 50 226-36
JXC Charcoal, Drierite (hydroquinone) 8 to 6 x 160  3 1600/160/110 GS  D    WWWW 20 226-68
Silica Gel/Charcoal (charcoal treated with sodium hydroxide) 10 x 210  3 750/1250/250 GS  D    WWRW 50 226-61

Table Notes:

*  Limited shelf-life; contact SKC for more information
  Limited shelf-life; refrigerator/freezer storage may be required. Contact SKC for more information.

Tube Ends:

GS:  Glass Sealed
GO:  Glass Open
SS:   Stainless Steel Open

Protective Tube Covers:

A:  6 mm OD x 70 mm length
B:  8 mm OD x 110 mm length
C:  10 mm OD x 150 mm length
D:  10 mm OD x 220 mm length and shorter tubes
P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
V:  OVS Tube Holder - Do not use an adjustable low flow holder

Separators:

W:  Glass Wool
G:  Glass Fibre Filter
F:   Foam
N:   Nylon Ring
Q:   Quartz Filter
R:   Glass Spacer
S:   Screen
T:   PTFE Ring
