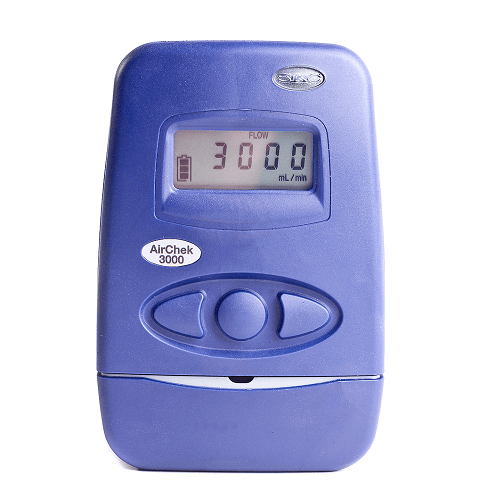

AirChek 3000 Pump
The AirChek 3000 pump is ATEX and IECEx certified for use in the majority of potentially explosive atmosphere environments, whether of explosive gases, explosive dusts or for mining applications, whilst also providing excellent performance for air sampling applications. The AirChek 3000 has a flow range of 5-3250 ml/min, and is suitable for particulate or vapour sampling. Its rubberised case protects against knocks, making it the most robust pump in our range.
The AirChek 3000 with a patented internal flow sensor brings advanced electronic flow to air sampling.This technology allows the user to program a desired flow rate via either the keypad or a PC using the optional DataTrac PC Software.
- Certified for use in the majority of potentially explosive environments
- IP64 rating
- Patented internal flow sensor
- Rechargeable battery pack
- Wide flow range, suitable for dust sampling and vapour sampling
- Simple to use with a large LCD
- LED indicates pump running
- Rubberised case to protect against knocks
- Automatic calibration using CalChek
- Programmable using the integral keypad or with a PC for maximum versatility
The AirChek 3000 is also available in basic pump, dust sampling, vapour/gas sampling, and combined dust/vapour sampling kits.
| Flow System |
|
|
| Power Supply |
|
|
| Certification |
|
|
| Display |
|
|
| Programmable |
|
|
| Operating Temperature |
|
|
| Case |
|
|
| Tubing Required |
|
|
| Dimensions |
|
|
| Weight |
|
Ex ia IIIC T120°C Da | Description | Part Number |
|
AirChek 3000 pump with NiMH battery pack and mini screwdriver set Requires SKC Approved charger |
210-3311 |
| Description | Part Number |
| Single Pump Basic Kit includes:
AirChek 3000 pump with NiMH battery pack and mini screwdriver set, single charger, instruction manual, 1 m length of Tygon tubing, and Step by Step Guide in a durable carry case |
210-3311K |
| Five Pump Basic Kit includes:
5 AirChek 3000 pumps with NiMH battery packs and mini screwdriver sets, 5 Station charger, instruction manuals, 5 x 1 m lengths Tygon tubing, and 3 Step by Step Guides in a durable carry case |
210-3311K5 |
| Single Pump Dust Sampling Kit includes:
AirChek 3000 pump with NiMH battery pack and mini screwdriver set, single charger, instruction manual, 1 m length of Tygon tubing, plastic IOM Multidust sampler, 5 plastic IOM Multidust cassettes, calidaptor and Step by Step Guide in a durable carry case |
210-3311KP |
| Five Pump Dust Sampling Kit includes:
5 AirChek 3000 pumps with NiMH battery packs and mini screwdriver sets, 5 station charger, instruction manuals, 5 plastic IOM Multidust samplers, 15 plastic IOM Multidust cassettes, 5 x 1 m lengths Tygon tubing, calidaptor and 3 Step by Step Guides in a durable carry case |
210-3311K5P |
| Single Pump Vapour Sampling Kit includes:
AirChek 3000 pump with NiMH battery pack and mini screwdriver set, single charger, instruction manual, 1 m length of Tygon tubing, All-In-One Tube Holder with CPC, type A protective tube cover, tube breaker and Step by Step Guide in a durable carry case |
210-3311KV |
| Five Pump Vapour Sampling Kit includes:
5 AirChek 3000 pumps with NiMH battery packs and mini screwdriver sets, 5 station charger, instruction manuals, 5 All-In-One Tube Holder with CPCs, 5 protective tube covers Type A, 5 x 1 m lengths Tygon tubing, tube breaker and 3 Step by Step Guides in a durable carry case |
210-3311K5V |
| Single Pump Combined Sampling Kit includes:
AirChek 3000 pump with NiMH battery pack and mini screwdriver set, single charger, instruction manual, 1 m length of Tygon tubing, All-In-One Tube Holder with CPC, protective tube cover Type A, plastic IOM Multidust sampler, 5 plastic IOM Multidust cassettes, calidaptor and Step by Step Guide in a durable carry case |
210-3311KC |
| Five Pump Combined Sampling Kit includes:
5 AirChek 3000 pumps with NiMH battery packs and mini screwdriver sets, 5 station charger, instruction manuals, 5 x 1 m lengths of Tygon tubing, 5 All-In-One Tube Holder with CPCs, 5 protective tube covers Type A, 5 plastic IOM Multidust samplers, 15 plastic IOM Multidust cassettes, calidaptor, tube breaker and 3 Step by Step Guides in a durable carry case |
210-3311K5C |
| Description | Part Number | |

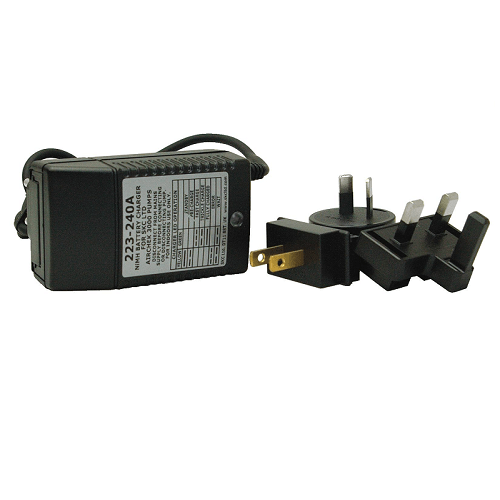

| Single Station Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand | 223-260A |  |

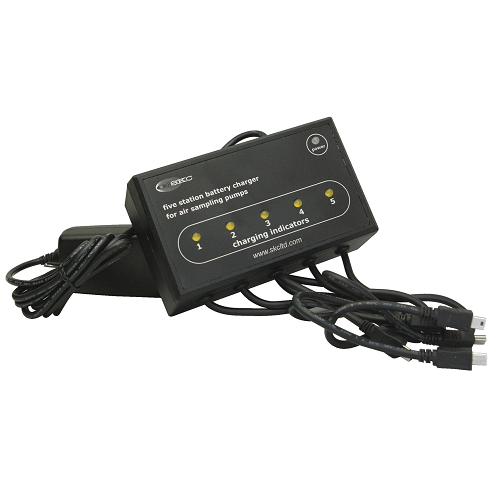

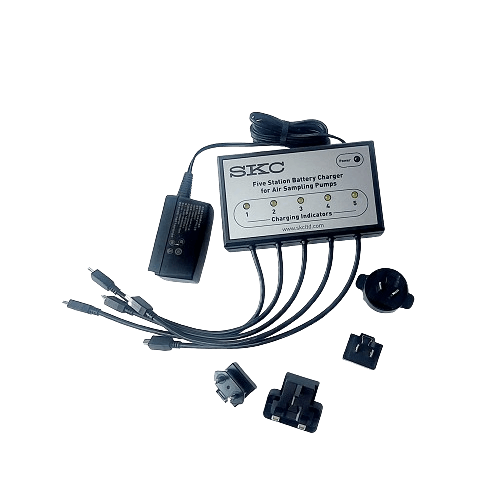

| Five Station Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand | 223-119A |  |

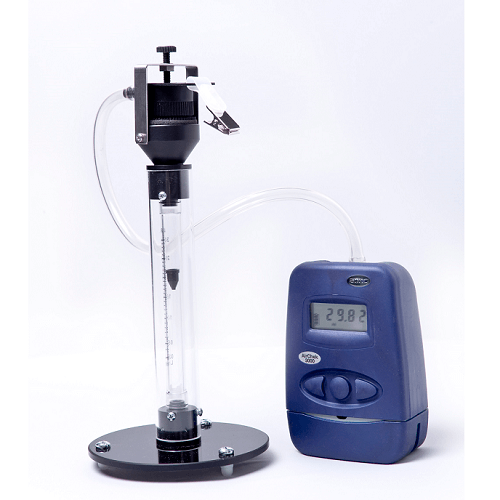

| chek-mate flowmeter, 500-5000 ml/min (recommended) (Other Calibrators available , see Calibration) |
375-0550 |  |
| Black nylon pump pouch with adjustable waist belt and shoulder strap | 224-88 |  |
| Red nylon pump pouch with adjustable waist belt and shoulder strap | 224-96A |  |
| Noise-reducing black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 55dBA | 224-96C |  |
| Single pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc | 224-98 |  |
| Five pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc | 224-97A |  |
| Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm) | 224-901 |  |
| Deluxe Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle. (LxWxH 55.9 x 45.5 x 26.5 cm). | 224-910 |  |
| Battery Pack for AirChek 3000 | P21030 |  |
| Battery Eliminator with European plug. Provides mains power operation of the pump for extended sample periods and incorporates an internal NiMH battery to enabled continuued operation and retention of data in the event of a mains power loss. Use of the eliminator will void the Intrinsic Safety certification - not to be used in hazardous areas. |
223-330B | |
| Battery Eliminator with UK plug. Provides mains power operation of the pump for extended sample periods and incorporates an internal NiMH battery to enabled continuued operation and retention of data in the event of a mains power loss. Use of the eliminator will void the Intrinsic Safety certification - not to be used in hazardous areas. |
223-330C | |
| CalChek Communicator Cable, for use with chek-mate (375-0550) | 375-200 |  |
| DataTrac PC Software Package including Software on USB stick, USB Adaptor Cable | 877-91K |  |
| Low Flow Adaptor kit allows the sample pump to sample with flow rates between 5 and 500 ml/min. | 210-500 |  |
| Waist belt, extends up to 122 cm (48 inches). | 224-12 |  |
 |
 |
 |
||
|
