SKC QuickTake 30 Sample Pump

The QuickTake® 30 air sampling pump offers constant flows from 10 to 30 L/min and run times up to 14 hours for sampling particulates. The pump is ideal for use with impactors, microvacuum cassettes, and spore traps.

The QuickTake 30 Air Sample Pump provides a 10-20L/min constant flow for a variety of high volume applications

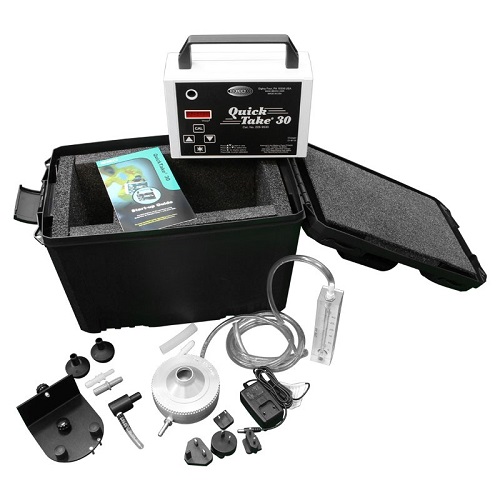

The QuickTake 30 BioStage Pump Kit includes a charger, rotamerter BioStage Impactor with mounting bracket in a carry case

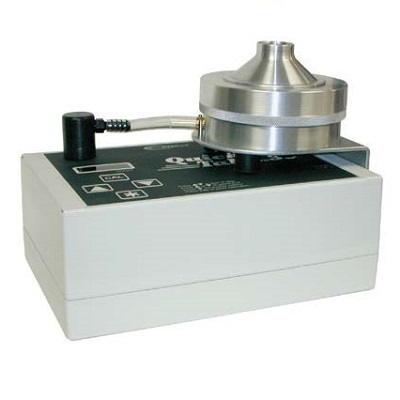

QuickTake 30 with BioStage on mounting bracket

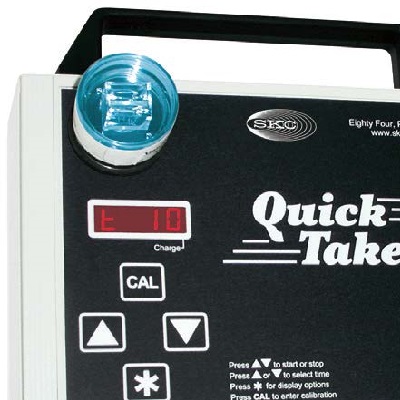

QuickTake 30 with VersaTrap cassette mounted on pump inlet

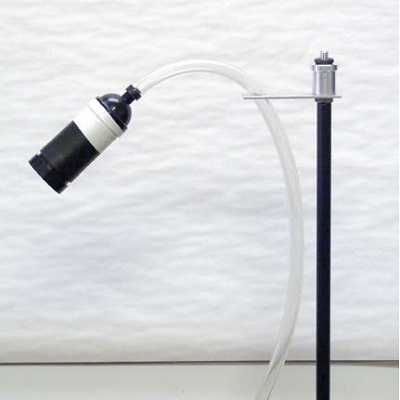

VersaTrap asbestos cassette mounted on tripod

Portable and versatile pump for high volume air sampling
Ideal for asbestos monitoring
Wide flow range
Fully programmable run times using large keypad
High contrast LED display for use in dim/dark conditions
Robust steel casing
Low noise
Operates from battery (or AC for extended sampling periods)
SKC VersaTrap Spore Trap Cassette and BioStage impactor mount directly on the pump inlet

Applications

Area and environmental monitoring
Biosampling
Indoor air studies
Asbestos monitoring
Long-term background monitoring
Stack sampling

Note: Not intended for use in explosive or hazardous environments.
The QuickTake 30 Air Sample Pump is NOT CE/UK CA MARKED and cannot be sold within Europe or the UK.

Specifications

Flow System		Flow range: 10 to 30 l/min Flow fault displayed if flow is restricted with auto shutdown and auto restart Compensating Flow Back Pressure Range: 10 L/min at 90 inches water back pressure 20 L/min at 50 inches water back pressure 30 L/min at 15 inches water back pressure
Power Supply		Rechargeable Li-Ion battery pack or AC Mains (100-240V) Low battery indication on LCD Charging time: 5 hours (approx)
Display		LED Displays presets, elapsed run time and battery status Low battery and fault indication End of timed run audible alarm
Operating Temperature		0 to 40°C (32 to 104°F)
Typical Cumulative Run Time		Spore Trap: 5 hours at 15L/min BioStage Impactor: 4 hours at 28.3 L/min 25mm, 1.2μm MCE filter: 9+ hours at 10L/min
Case		ABS plastic with handle
Tubing Required		3/8" ID
Dimensions		23.6 x 21.3 x 8.9 cm (9.3 x 8.4 x 3.5")
Weight		2200 g (incl battery)

QuickTake 30 Pump

Description	Part Number

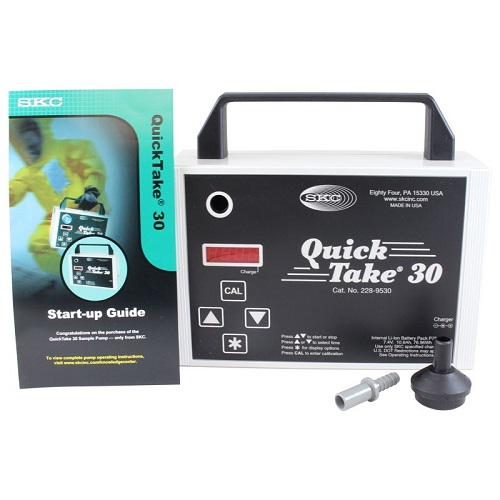

QuickTake 30 Sample Pump with battery, charger and operating manual	228-9530

QuickTake 30 Pump Kit

Description	Part Number
QuickTake 30 Sample Pump Kit includes: QuickTake 30 Sample Pump with battery, charger, rotameter,BioSTage, mounting bracket with inlet adaptor, calibration adaptor, in a carry case	228-9530K

QuickTake 30 Pump Accessories

Description	Part Number
Single Charger 100-240 V with UK/EU/US/AUS mains plugs Note: Charger is CE Marked but Quicktake 30 is not CE Marked	223-245
Recommended chek-mate flowmeter, 5-30 l/min (Other Calibrators available , see Calibration)	375-50300
Pulsation Dampener, for use with chek-mate 375-50300	375-150
Mounting Bracket for BioStage Impactor (includes inlet adaptor)	228-9531
Replacement Li-Ion Battery Pack	P75689
Replacement Filter/Ring Set (includes 5 x filters and 1 x O-ring)	P40021
Replacement Inlet Adapter, for the QuickTake 30 Mounting Bracket	P20156
Tripod Stand, for cassette or BioStage Impactor	228-506
