SKC Grab Air Sample Pump

The Grab Air Bag Sample Pump is a simple pump, designed to fill sample bags at 1 L/min. It collects approximately 1000 L volume on one 9V akaline battery. It is recommended for use with sample bags up to 10 L size. Simply attach a sample bag to the outlet port and turn on the pump. Simple, quick, economical.

The Grab Air Sampler pulls air containing the sample into the pump at approximately 1 L/min and immediately exhausts it into a sample bag connected to the pump with PTFE tubing. Sampling is complete when the bag is properly filled.

Note:  Not intended for use in explosive or hazardous environments.
            The Grab Air Sample Pump is NOT CE/UK CA MARKED and cannot be sold within Europe or the UK.

The Grab Air Sample Pump is a simple and economical way to fill gas sample bags
Connect the Grab Air Pump to a gas sample bag with tubing to form the Grab Air Sampling Train
Grab Air Sample Pump Hazmat Kit
Specifications
Flow System
  • Fixed flow rate: 1 L/min
  • Maximum back pressure: 850 mbar
Power Supply
  • 9V Alkaline Battery
Case
  • Study, lightweight plastic
Dimensions
  • 108 x 63 x 27 mm (4.25 x 2.5 x 1.1")
Weight
  • 186g (6.6oz)

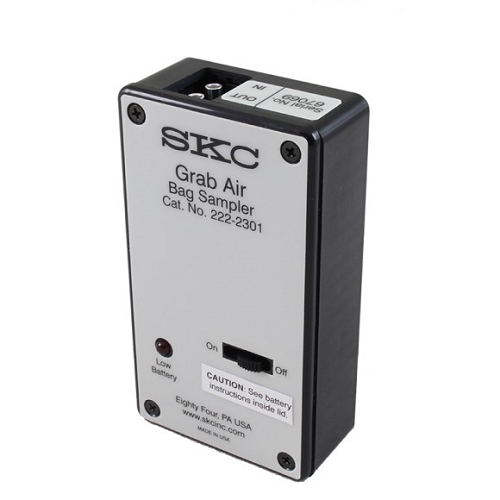

Grab Air Pump
Description Part Number
Grab Air Pump 222-2301

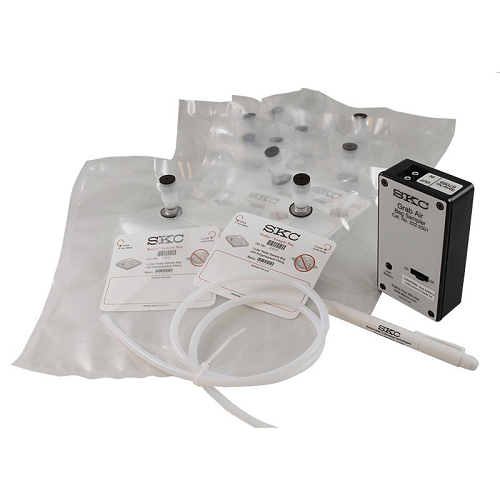

Grab Air Hazmat Kit
Description Part Number

Grab Air Sample Pump Hazmat Kit includes

Pump, 9V alkaline battery, 1m (3ft) of 3/16 inch ID PTFE tubing, 10 x 1 Litre Tedlar Bags with single polypropylene fitting (part number 232-01)

 222-2111
