Specific Sorbent Tubes

A range of sorbent tubes utilising a variety of sorbent material.

To select a tube for a specific compound refer to the SKC Sampling Guides or use our SKC online Hazard Database

  • Carbon Beads Sorbent Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Carbon Beads
    (potassium hydroxide)
    /PTFE Filter    		 16 to
    8 x 85    		  2 100/50 GO H  WWWTT 5 226-142 *

    Table Notes:

    *  Limited shelf-life; contact SKC for more information.

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

    Protective Tube Covers:

    H:  Specifically for use with 226-142 and 226-177 sorbent tubes

  • Drying Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Drying Tube 10 x 160  1 900 GS -  WW 50 226-44-02
    Drying Tube 6 x 70  1 250 GS -  WW 50 226-44

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • Firebrick Sorbent Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Firebrick (Gas
    chrom-R) (sulphuric acid)    		 7 x 70  1 300 GS B    WW 50 226-42-02

    Table Notes:

    *  Limited shelf-life; contact SKC for more information.

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • Florisil Sorbent Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Florisil 6 x 70  2 100/50 GS A    WWW 50 226-39
    Florisil 8 x 110  2 400/200 GS B    WWW 50 226-39-02

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • Molecular Sieve Sorbent Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Molecular Sieve (triethanolamine) 7 x 110  2 400/200 GS B    WWW 50 226-40-02
    Molecular Sieve (triethanolamine) (1 tube)
    Oxidizer
    (1 tube)
    Molecular Sieve (triethanolamine)
    (1 tube)
    (3 tubes total)    		 7 x 70


    7 x 110

    7 x 70    		  1


     1

     1    		 400


    400

    600    		 GS


    GS

    GS    		 D  WW


     WW

     WW    		 10 Sets 226-40A
    Molecular sieve
    (triethanolamine)
    /oxidizer
    /molecular sieve
    (triethanolamine)    		 10 x 110  3 400
    /400
    /600    		 GS  C    WWWW 10
    50    		 226-182A
    226-182

    Table Notes:

    *  Limited shelf-life; contact SKC for more information
    †  Limited shelf-life; refrigerator/freezer storage may be required. Contact SKC for more information.

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • Oxidiser Sorbent Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Oxidiser
    Note: Currently unavailable    		 7 x 110  1 800 GS  B    WW 20 226-186

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • Soda Lime Sorbent Tubes

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    (mg)    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Soda Lime 7 x 110  2 600/200 GS  B    WWWW 50 226-210

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • Traps for Volatile Organic Sampling Trains (VOSTs)

    These are specified by the US EPA Method 0031 in SW-846 for sampling VOCs in gaseous effluent from stationary emission sources such as hazardous waste incinerators. SKC VOST traps meet method specifications, are tested for background and pressure drop, and feature Swagelok fittings and PTFE ferrules.

    Note: Traps are not supplied thermally conditioned. They must be conditioned prior to use, and used and analysed within 14 days of conditioning.

    Application Sorbent (coating) Size (mm)
    ODxLength    		 Ends Pack
    Size    		 Part Number
    EPA 0031 Tenax TA 35/60 mesh (1.6) 16 x 125 GO Each 226-134

    Table Notes:

    *  Limited shelf-life; contact SKC for more information.

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

Read more …Specific Sorbent Tubes

Porapak Sorbent Tubes

Porapak® sorbent tubes contain a range of porous polymer solvents with increasing polarity, including Porapak® N, which is used for monitoring volatile nitriles.

To select a tube for a specific compound refer to the SKC Sampling Guides or use our SKC online Hazard Database

Porapak Sorbent Tubes

Sorbent
(coating)		 Size (mm)
ODxLength		 Sections Sorbent
(mg)		 Ends Tube
Cover		 Separators Pack
Size		 Part Number
Porapak-P 6 x 110  2 100/50 GS  B    FWW  50 226-114
Porapak-Q 6 x 110  2 150/75 GS  B    WWW  50 226-115
Porapak-Q 6 x 70  2 78/39 GS  A    WWW  50 226-59-03
Porapak-T
Porapak-T
Set of 2 tubes		 6 x 40
6 x 40		  1
 1		 75
25		 GO
GO		  B    WW
 WW 		 10 Sets 226-116A

Table Notes:

*  Limited shelf-life; contact SKC for more information.

Tube Ends:

GS:  Glass Sealed
GO:  Glass Open
SS:   Stainless Steel Open

Protective Tube Covers:

A:  6 mm OD x 70 mm length
B:  8 mm OD x 110 mm length
C:  10 mm OD x 150 mm length
D:  10 mm OD x 220 mm length and shorter tubes
P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
V:  OVS Tube Holder - Do not use an adjustable low flow holder

Separators:

W:  Glass Wool
G:  Glass Fibre Filter
F:   Foam
N:   Nylon Ring
Q:   Quartz Filter
R:   Glass Spacer
S:   Screen
T:   PTFE Ring

Read more …Porapak Sorbent Tubes

Polyurethane Foam (PUF) Tubes

Polyurethane Foam (PUF) tubes are available in low volume or high volume versions:

  • The low volume PUF tubes (22 x 100 mm) are for measurements up to 24 hours at flow rates between 1 to 5 L/min.
  • The high volume PUF tubes (65 x 125 mm) are designed for use with high volume samplers for ambient air sampling of organochlorine pesticides, polychlorinated biphenyls (PCBs), and polycyclic aromatic hydrocarbons (PAHs).

To select a tube for a specific compound refer to the SKC Sampling Guides or use the SKC online Hazard Database

  • Low Volume Polyurethane Foam (PUF) Tubes

    The Low Volume PUF Tubes:

    • Meet the specifications of EPA TO-10A, EPA-IP-8, ASTM D4861.
    • Can be used with personal sample pumps up to 5L/min
    • Precleaned to meet method specifications
    • Suitable for ambient, indoor or personal air sampling
    • Sample up to 24 hours
    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent Size Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    Polyurethane
    Foam (PUF)    		 22 x 100  1 76 mm GO  P   None Each 226-92
    PUF/Tenax/PUF 22 x 100  3 30 mm/750 mg
    /30 mm    		 GO  P   None Each 226-124
    PUF/Glass
    Fibre Filter    		 22 x 100  1 76 mm GO  P   FSGN Each 226-126
    PUF/XAD-2/PUF 22 x 100  3 30 mm/1500 mg
    /30 mm    		 GO  P   None Each 226-143

    Table Notes:

    *  Limited shelf-life; contact SKC for more information.

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

  • High Volume Polyurethane Foam (PUF) Tubes

    The PUF-only sorbent tubes meet ASTM D6209 and EPA IP-7, TO-4A and TO-13A, and are packed with precleaned PUF for low background. The PUF/XAD-2 combination tube meets EPA Method 600/8-80-038 specifications, and contains cleaned XAD-2 sorbent between two PUFs, which improves volatile component extraction during analysis.

    Sorbent
    (coating)    		 Size (mm)
    ODxLength    		 Sections Sorbent
    Size    		 Ends Tube
    Cover    		 Separators Pack
    Size    		 Part Number
    PUF/XAD-2/PUF 65 x 125  3 50 mm/10 g
    /25 mm    		 GO  - None Each 226-129
    Polyurethane
    Foam (PUF)    		 65 x 125  1 75 mm GO  - None Each 226-131

    Table Notes:

    *  Limited shelf-life; contact SKC for more information.

    Tube Ends:

    GS:  Glass Sealed
    GO:  Glass Open
    SS:   Stainless Steel Open

    Protective Tube Covers:

    A:  6 mm OD x 70 mm length
    B:  8 mm OD x 110 mm length
    C:  10 mm OD x 150 mm length
    D:  10 mm OD x 220 mm length and shorter tubes
    P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
    V:  OVS Tube Holder - Do not use an adjustable low flow holder

    Separators:

    W:  Glass Wool
    G:  Glass Fibre Filter
    F:   Foam
    N:   Nylon Ring
    Q:   Quartz Filter
    R:   Glass Spacer
    S:   Screen
    T:   PTFE Ring

Read more …Polyurethane Foam (PUF) Tubes

Gas and Vapour Sampling Accessories

SKC offer a range of gas and vapour sampling accessories to complement the range of air sampling pumps.

  • How to Build a Single Tube Low Flow Sampling Train

    Simple Instructions to Create a Single Tube Sample Train

  • How to Build a Multi-Tube Low Flow Sampling Train

    Simple Instructions to Create a Multi-Tube Sample Train

  • Low Flow Adaptor Kit

    Note that the Universal series of air sampling pumps have an internal adjustment (regulator) for low flow sampling. For the Universal pumps the relevant Adjustable/Non-Adjustable Low Flow Tube Holders and Tube Covers are purchased as required.

    Pump Part Number
    Low Flow Adaptor Kit for Sidekick and AirChek series Pumps (3000, ESSENTIAL+, CONNECT, XR5000, TOUCH)

    This kit includes an All-in-One Adjustable Tube Holder and a Protective Tube Cover Type A.

    		 210-500
    Low Flow Adaptor Kit for AirLite

    This kit includes an Adjustable Low Flow Single Tube Holder, Constant Pressure Controller (CPC) and Protective Tube Cover Type A.

    		 110-500

  • Constant Pressure Controller (CPC)

    A CPC is a device which allows a sampling pump to operate at low flow rates and with the optional adjustable low flow tube holders.

    Constant Pressure Controller (CPC)

    The CPC is placed inline between the adjustable low flow tube holder and the pump inlet, and regulates the specific amount of pressure to be maintained across the needle valve(s) on the supply (pressure) end of the sampling train. During sampling a valve inside the CPC opens and pulls additional air into the train on the pump (vacuum) end of the CPC as needed, to maintain the CPC-specified pressure across the needle valve(s). Note that the All-in-One low flow tube holder (224-27) is available which combines a CPC with a single low flow adjustable tube holder.

    Description Part Number
    CPC for Sidekick and AirChek series pumps (3000, ESSENTIAL+, CONNECT, XR5000, TOUCH) 224-26-CPC
    CPC for AirLite and Pocket Pump TOUCH* pumps 224-26CPC-10

     * Not required when using a single adjustable low flow tube holder with a Pocket Pump TOUCH pump

    Constant Pressure Controller (CPC) Instructions    Constant Pressure Controller (CPC) Instructions

    224-26-CPC
    Instructions



    224-26CPC-10
    Instructions

  • Adjustable Low Flow Tube Holders

    These products enable a sampling pump to be used with up to 4 sorbent tubes at the same time, either the same tube type running at different flow rates, or with different tubes running at the same or different flow rates.

    Note that when using a single tube with the Pocket Pump Touch the Non-Adjustable Low Flow Tube Holder is used.

    Description Number of Tubes Part Number
    Single adjustable low flow tube holder (all pumps except Pocket Pump Touch) 1 224-26-01  224-26-01 Single adjustable low flow tube holder for most pumps
    Double adjustable low flow tube holder 2 224-26-02  224-26-02 Double adjustable low flow tube holder
    Triple adjustable low flow tube holder 3 224-26-03  224-26-03 Triple adjustable low flow tube holder
    Quadruple adjustable low flow tube holder 4 224-26-04  224-26-04 Quadruple adjustable low flow tube holder
    All-In-One low flow single tube holder
    Combines an adjustable low flow tube holder and Constant Pressure Controller (CPC) in one unit. Not for use with Universal Pumps.    		 1 224-27  224-27 All-In-One low flow single tube holder. Combines an adjustable low flow tube holder and Constant Pressure Controller (CPC) in one unit.
    Single Adjustable Low Flow Tube Holder

    224-26-01

    Double Adjustable Low Flow Tube Holder

    224-26-02

    Triple Adjustable Low Flow Tube Holder

    224-26-03

    Quadruple Adjustable Low Flow Tube Holder

    224-26-04

    All-in-One Low Flow Tube Holder

    224-27

    Adjustable Low Flow Tube Holder Instructions



    		 All In One Tube Holder Instructions

    Adjustable Low Flow Tube
    Holder Instructions



    All-In-One Low Flow Tube
    Holder Instructions

  • Protective Tube Covers

    These protect the ends of the tube for storage and transit. The appropriate tube cover must be selected by matching the Tube Cover type in the Sorbent Tube Selection Charts. Note that tube covers Types A to D are for use with SKC Adjustable Low Flow Tube Holders only. Collar clips are attached for convenience.

    Tube Cover Size OD x Length Part Number
    A 6 mm OD x 70 mm L 224-29A  224-29A Protective Tube Cover Type A, 6 mm OD x 70 mm Length
    B 8 mm OD x 110 mm L 224-29B  224-29B Protective Tube Cover Type B, 8 mm OD x 110 mm Length
    C 10 mm OD x 150 mm L 224-29C  224-29C Protective Tube Cover Type C, 10 mm OD x 150 mm Length
    D 10 mm OD x 220 mm L 224-29D  224-29D Protective Tube Cover Type D, 10 mm OD x 220 mm Length
    V OVS Tubes* (do not use an adjustable low flow holder) 224-29V  224-29V Protective Tube Cover Type V for OVS tubes
    P Low-volume PUF** (polyurethane foam). Note: do not use an adjustable low flow holder 224-29P  224-29P Protective Tube Cover Type P for low-volume PUF (polyurethane foam) tubes
    H 16mm OD. Specifically for use with sorbent tubes 226-142 and 226-177 224-29H  224-29H Protective Tube Cover Type H, for tubes 226-142 and 226-177

    * OSHA Versatile Sampler (OVS) tubes are typically used at a flow rate of 1 L/min provided by a personal sample pump. The special OVS tube holder is designed to accommodate the 13 mm diameter of SKC OVS tubes, provide a convenient clip to attach the tube in the breathing zone, and protect the tube during sampling. Includes 0.9 m (3ft) of tubing.

    ** Low-volume PUF (polyurethane foam) tubes are typically used at a flow rate of 1 to 5 L/min provided by a personal sample pump. Therefore, a special tube holder is used in place of an adjustable low flow holder that only allows flows to 500 ml/min. The low-volume PUF tube holder is also specially designed to accommodate the large 22 mm diameter and long 100 mm length of SKC low-volume PUF tubes. Includes 0.9 m (3ft) of tubing.

    Type A Protective Tube Cover

    224-29A

    Type B Protective Tube Cover

    224-29B

    Type C Protective Tube Cover

    224-29C

    Type D Protective Tube Cover

    224-29D

    Protective Tube Cover for OVS Tubes

    224-29V

    Protective Tube Cover for Low Volume PUF Tubes

    224-29P/-29H

    OVS Tube Holder Instructions    224-29H Tube Holder Instructions

    OVS Tube Holder
    Instructions



    224-29H Tube Holder
    Instructions

  • Low Flow Tube Covers with a Non-Adjustable Tube Holder

    Non-adjustable low flow tube holders with plastic tube covers for use with the Pocket Pump Touch Pump.

    Tube Cover Size OD x Length Part Number
    A For Standard tubes 6 mm OD x 70 mm length 222-3-1  222-3-1 Low Flow Tube Cover Type A with a Non-Adjustable Tube Holder for 6 mm OD x 70 mm Length tubes

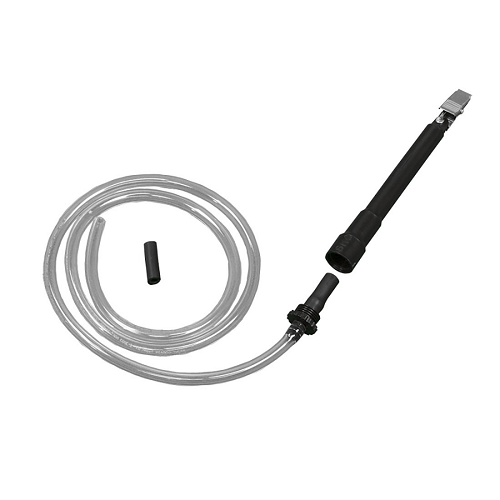

    B For Tubes 7 or 8 mm OD x 110 mm length 222-3L-1  222-3L-1 Low Flow Tube Cover Type B with a Non-Adjustable Tube Holder for 7-8 mm OD x 110 mm Length tubes

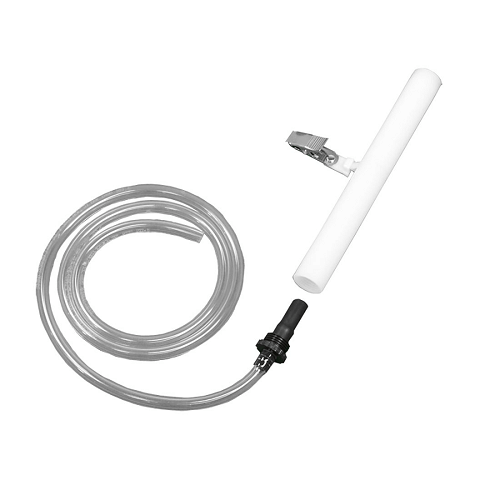

    C For Tubes 10 mm OD x 150 mm length 222-3XL-1  222-3XL-1 Low Flow Tube Cover Type C with a Non-Adjustable Tube Holder, 10 mm OD x 150 mm Length tubes

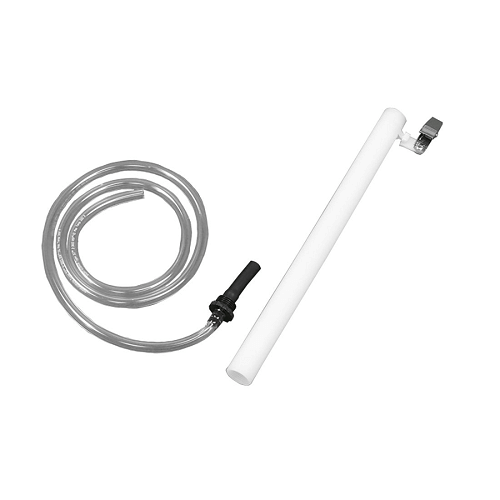

    D For Tubes 10 mm OD x 220 mm length and shorter tubes 222-3XD-1  222-3XD-1 Low Flow Tube Cover Type D with a Non-Adjustable Tube Holder, for 10 mm OD x 220 mm Length tubes
    Non-Adjustable Low Flow Tube Holder & Cover

  • Tube Breakers

    Description Part Number
    All-in-one Tube Breaker, in stainless steel for 6, 7, 8, and 10 mm OD tubes. Heavy duty cap rotates to expose the desired size opener and to retain glass tips for disposal. 226-03-055  226-03-055 All-in-one Tube Breaker, in stainless steel for 6, 7, 8, and 10 mm OD tubes
    Tube Scorer/Breaker, for 6 mm OD tubes; scores and breaks end tips off glass tubes leaving a clean, smooth opening and retains broken tip ends for safe disposal 810-722   810-722 Gastec Tube Tip Breaker, safely breaks tube tips and stores up to 260 broken tube tips.
      810-722 Gastec Tube Tip Breaker, safely breaks tube tips and stores up to 260 broken tube tips.
    Tube Breaker/Capper for 6, 7, 8 and 10 OD tubes

    226-03-055

    Tube Scorer/Breaker

    810-722

  • Tools

    Description Part Number
    Tool Kit, includes scissors, pliers, file, 2 slotted screwdrivers, 2, crosshead screwdrivers, forceps and charcoal pick 376-01-01  376-01-01 Tool Kit, includes scissors, pliers, file, 2 slotted screwdrivers, 2, crosshead screwdrivers, forceps and charcoal pick
    Charcoal Pick, used to dislodge/retrieve charcoal from a sorbent tube 222-3-20  222-3-20 Charcoal Pick, used to dislodge/retrieve charcoal from a sorbent tube
    Tool Kit

    376-01-01

    Charcoal Pick for dislodging/retrieving charcoal

    222-3-20

  • How To Use Sorbent Tubes

    How To Use Sorbent Tubes

    Sorbent Tube Tip Sheet

Read more …Gas and Vapour Sampling Accessories

Chromosorb Sorbent Tubes

Chromosorb® is a porous polymer sorbent and is used to trap low-boiling hydrocarbons, benzene, labile compounds, and volatile oxygenated compounds. Chromosorb® 106 is a hydrophobic sorbent and the least polar polymer in the Chromosorb family and is functionally similar to Anasorb® 727.

Chromosorb® 102 is used to trap chlorine-containing pesticides

To select a tube for a specific compound refer to the SKC Sampling Guides or use our SKC online Hazard Database

Chromosorb Sorbent Tubes

Sorbent
(coating)		 Size (mm)
ODxLength		 Sections Sorbent
(mg)		 Ends Tube
Cover		 Separators Pack
Size		 Part Number
Chromosorb 102 8 x 110  2 100/50 GS  B    WWW 50 226-107
Chromosorb 102 8 x 110  2 200/100 GS  B    WWW 20 226-106A
Chromosorb 102 6 x 70  2 66/33 GS  A    WWW 50 226-49-102
Chromosorb 106 (purged) 1/4 x 3-1/2 in  1 350 SS  B    SWWS Each 226-358 ‡   §
Chromosorb 106 (unpurged) 1/4 x 3-1/2 in  1 350 SS  B    SWWS Each 226-358-UP ‡   §
Chromosorb 106 10 x 150  2 600/300 GS  C    WWW 10 226-111A
Chromosorb 106 7 x 70  2 100/50 GS  B    WWW 50 226-110
Chromosorb 106 6 x 70  2 75/37 GS  A    WWW 50 226-49-106

Table Notes:

‡ Tubes are chemically conditioned before shipping; use within 6 months or recondition. Restocking fee applies.
§ Each tube has a flow direction arrow and unique number.

Tube Ends:

GS:  Glass Sealed
GO:  Glass Open
SS:   Stainless Steel Open

Protective Tube Covers:

A:  6 mm OD x 70 mm length
B:  8 mm OD x 110 mm length
C:  10 mm OD x 150 mm length
D:  10 mm OD x 220 mm length and shorter tubes
P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
V:  OVS Tube Holder - Do not use an adjustable low flow holder

Separators:

W:  Glass Wool
G:  Glass Fibre Filter
F:   Foam
N:   Nylon Ring
Q:   Quartz Filter
R:   Glass Spacer
S:   Screen
T:   PTFE Ring

Read more …Chromosorb Sorbent Tubes

More Articles …
