HAZ-SCANNER IEMS Indoor Environmental Monitoring Station - DISCONTINUED
The HAZ-SCANNER™ IEMS portable, indoor environmental air monitoring station can be configured for up to 14 simultaneous air measurements including standard configuration of PM10 or TSP, CO2, CO, temperature, and relative humidity. Use the IEMS for air profiles at schools, LEED green building certification, job task analysis, and IEQ assessments.
- Direct reading
- Measures and displays data for up to 14 critical indoor air quality parameters
- Standard IEMS configuration: measure 5 parameters including PM10 or TSP particulates, CO2, CO, temperature, and relative humidity
- Optional: Add up to 9 optional interchangeable sensors and/or IEMS-specific meters (up to 9 sensors/meters total)
Choose from additional toxic gas sensors, PID for VOCs, or IEMS-specific meters for light intensity, sound/noise, atomic/nuclear radiation, ELF radiation, and air velocity
- Available analogue input port for alternative meter
- Interchangeable size-selective impactors are available for PM1.0, PM2.5, or PM4.0 (close approximation of respirable)
- In-line standard 37 mm or optional 25 mm gravimetric filter cassette provides concurrent filter sampling for chemical and biological analyses
- Internal sample pump provides flow rate of 2 L/min
- NiMH battery for 8-hour operation, continuous operation with AC power
- Displays TWA, STEL, Max, and Min
- Optional alarm indicator light and siren for user-defined threshold limits
- Removable handheld sensors for spot-checking remote areas
- Datalogging and optional real-time wireless data transmission
- Easy-to-use graph and reporting software — compatible with PC and Mac
Specifications
Display |
|
LCD |
Operation |
|
4 key splashproof membrane switch |
Power |
|
12V NiMH rechargeable battery |
Operating Time |
|
8 hours on battery, continuous on AC |
Display Measurements |
|
TWA, STEL, Max, Min |
Recording Time |
|
1 second to 50 weeks |
Sampling Rate |
|
1 second, 1 minute, 10 minute intervals |
Data Storage |
|
454,545 data points |
Sampling Pump |
|
2 L/min |
Digital Output |
|
RS232 (PC), RS423 (Mac) |
Software |
|
PC or Mac compatible |
Dimensions |
|
17.8 x 10.2 x 28 cm (7 x 4 x 11 in) |
Weight |
|
2700 g (6 lbs) |
Operating Temperature |
|
-5 to 50°C (23 to 122°F) |
Storage Temperature |
|
-20 to 60°C (-4 to 140°F) |
Humidity |
|
95%, non-condensing |
Auxiliary Analogue Output |
|
0 to 2.5V DC ( channel for alternative meter) |
HAZ-SCANNER IEMS
Description |
Part Number |
HAZ-SCANNER IEMS Standard Configuration, includes:
particulate sensor for TSP, impactor for PM10 sampling, CO2, CO, temperature, and relative humidity sensors, NiMH battery and charger, HazComm Pro Software and Instructions on USB Memory Stick, cables and carry case
|
770-800 |
IEMS Accessories
Description |
Part Number |
|
Size-selective Impactor, PM1.0 |
770-811 |
|
Size-selective Impactor, PM2.5 |
770-812 |
|
Size-selective Impactor, PM4.0/respirable |
770-813 |
|
Size-selective Impactor, PM10 |
770-821 |
|
Calibration Standard, particulate, for verifying span and optical sensor performance |
770-207 |
|

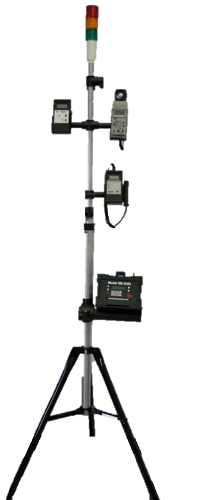

Tripod Stand, includes holder for IEMS, 1 to 1.5 m (3 to 5 ft) |
770-814 |
|
External audible alarm |
770-815 |
|
Wireless Radio Modem, 900 MHz (US), 868MHz (Europe) with up to 450 m line-of-sight transmission |
770-505X |
|
Single AC Charger, 110-220V |
770-825 |
|

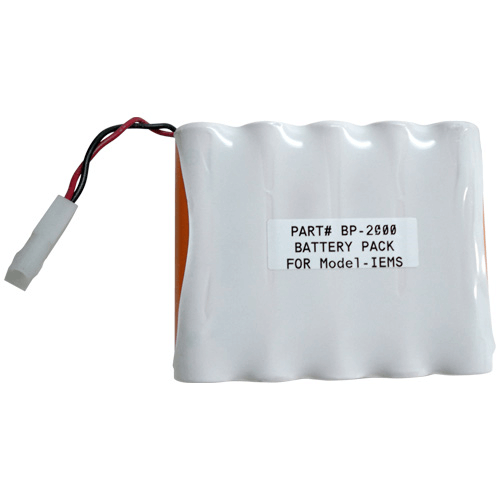

Replacement NiMH Battery Pack |
770-810 |
|

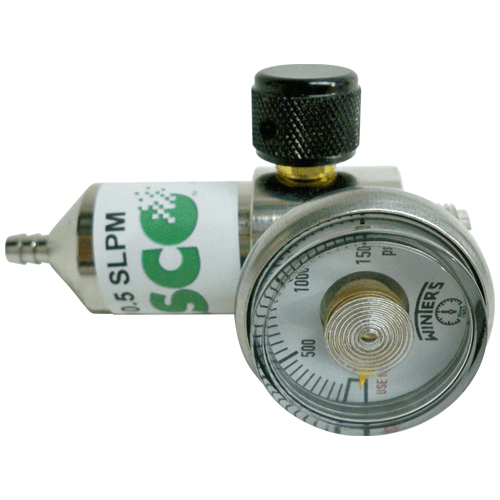

Calibration Gas Regulator, 1 L/min, for calibrating HAZ-SCANNER sensors |
770-816 |
|
Wireless Network Software for Windows and Apple Computers |
770-507 |
|
Documentation
|
HAZ-SCANNER IEMS Datasheet
|
